BEXBG15DPAC230AB1A1R/A, e2s BExBG15 Series Amber Strobe Beacon, 230 V ac, Surface Mount, Xenon Bulb, IP67, Маячок

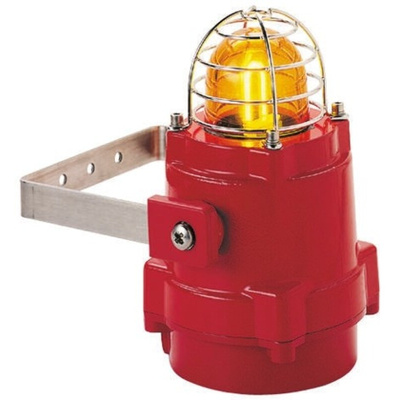

E2S BExBG15 Explosion Proof Xenon Beacon

E2S explosion proof BExBG15 series 15 Joule Xenon strobe beacons robust construction enables installation in the harsh environments. The enclosure is manufactured from corrosion proof, marine grade LM6 aluminium with a chromate and powder coat finish. Featuring two M20 cable entries, stainless steel lens guard, large cable termination area containing in & out terminals and an ingress protection of IP66/67. The BExBG15 beacons feature automatic synchronisation in multi-beacon systems.

Features and Benefits

• Marine grade, corrosion proof, LM6 aluminium enclosure


• Automatic synchronisation on multi-beacon system


• Xenon tubes mechanically secured against shock & vibration


• Glass lens & Stainless Steel guard


• 468 candela effective light intensity


• Beacons can be set to ’flip-flop’ alternating mode with other units on multi-beacon systems


• IP66/67 ingress protection


• Dual M20 cable entries


• Ratchet adjustable stainless steel ’U’ bracket for 360° positioning


• Operating temperature is between -25°C and +55°C

Approvals

• IECEx KEM 10.0002X


• ATEX KEMA 00ATEX2006X


• TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109


• SIL 1 and SIL 2 compliant to IEC 61508 (2010)


• INMETRO certificate: 10-IEx-0010

E2S 1-21-130 Beacon

BExBG15 Instruction Manual

BExBG15 Datasheet
