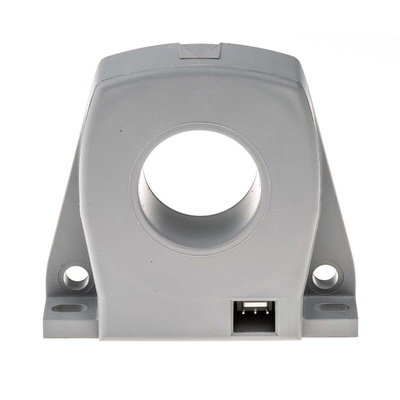

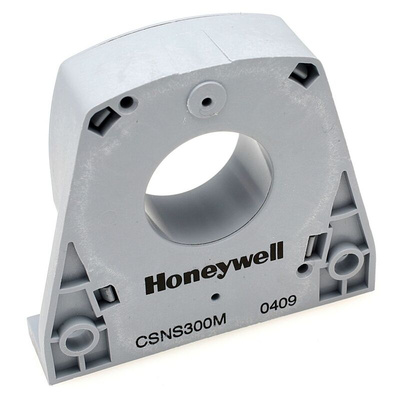

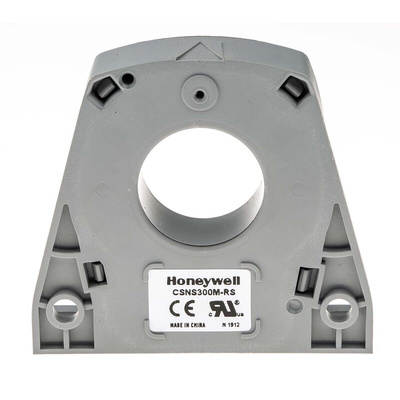

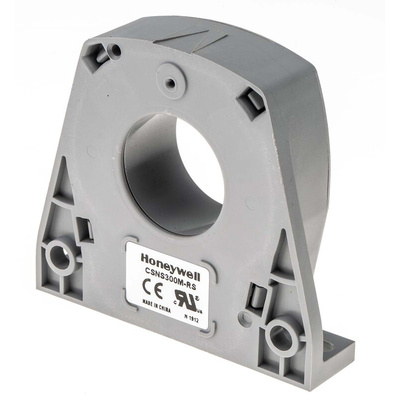

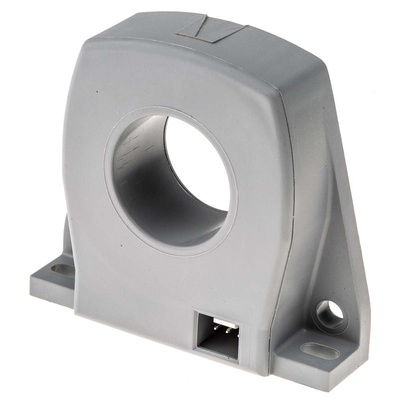

CSNS300M, Honeywell CSNS Series Current Transformer, 600A Input, 600:1, 150 mA Output, 26mm Bore, 15 V, Преобразователь тока

CSNS300 Sensors

Flexible alternative to the current shunt or transformers for the isolated measurement of a.c. or d.c. currents. Based on the principle of Hall effect and null balance method.

Small footprint
Measures dc, ac and impulse currents
Large primary conductor hole
High accuracy
Typical applications include; variable speed drives, overcurrent protection, power supply systems, frequency converters, UPS, robotics, battery management systems and welding equipment

Honeywell Current Transformer, 12 to 18V DC Supply Voltage, +0.5% Accuracy - CSNS Series - CSNS300M

For accurate measurements in high-current applications, choose this robust current transformer from Honeywell. It uses Hall effect closed-loop technology to accurately detect currents of +600A for use in heavy-duty applications. The transformer's thermoplastic housing offers resistance to impact and serves as an insulator to prevent electric shocks and ensure safe operation. It can be mounted with busbars or installed directly onto your PCB, making it a versatile choice.

Features & Benefits

• Accuracy of ±0.5% for precise current measurements
• Broad operating temperature range of -40°C to +85°C for use in demanding settings

Applications

• Measurement and instrumentation
• Variable speed drives
• Automation industry

What types of currents does this transformer detect?

This transformer can detect AC, DC and impulse currents, making it a versatile option for use in a wide range of applications.
