84-5030.0020, EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, 1 NO + 1 NC, IP65

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

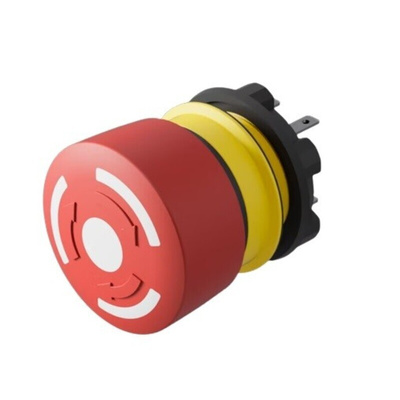

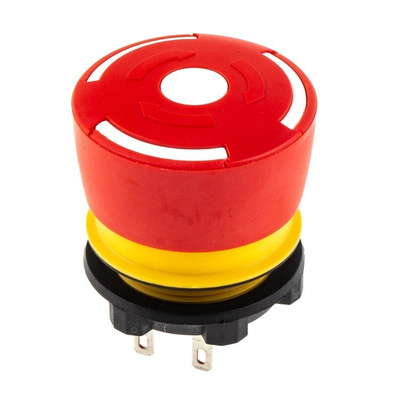

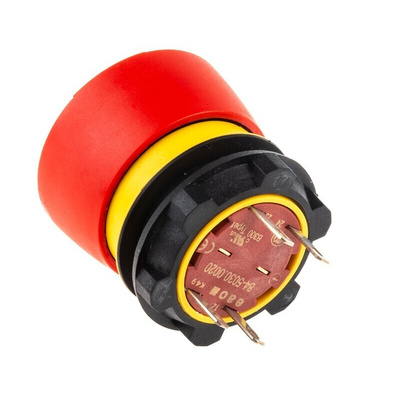

EAO Red Emergency Stop Push Button, 22.5mm Cutout, NO/NC Contacts - 84 Series - 84-5030.0020

Immediately shut down your equipment in the event of a hazardous situation with this emergency stop push button from EAO. Its bright red colour, white highlights and yellow base make it easy to spot and clearly identifiable as an emergency device. Push the button with your palm to activate it, then twist it clockwise to reset. As it has an estimated service life of more than 50,000 operations, you can rely on this unit for long-term performance. A broad operating temperature range of -25°C to +85°C makes it suitable for use in harsh industrial environments.

Features & Benefits

• Plastic material is resistant to wear and impact for use in heavy-duty conditions
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
• Monoblock design for ease of assembly
• Gold-plated silver contacts are highly conductive and resistant to corrosion for reliable performance
• Plug-in solder terminals for a simple and secure electrical connection

Applications

• Process control equipment
• Construction industry
• Robotic applications
• Security systems
• Emergency exits

Where can I mount this push button?

You can mount this push button on a panel measuring 1 to 4mm thick. Its 22.5mm cutout size and minimal behind-panel depth mean it won't take up much space in your setup.
