RS PRO , Right Angle , Female Gold , Copper Alloy , Backplane Connector Contact, Контакты

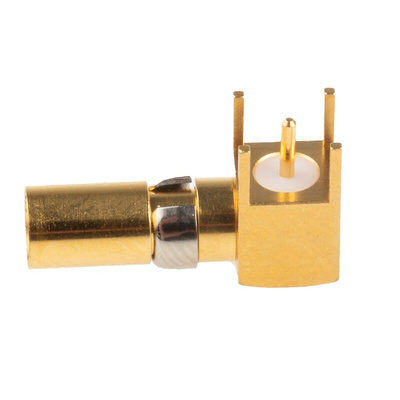

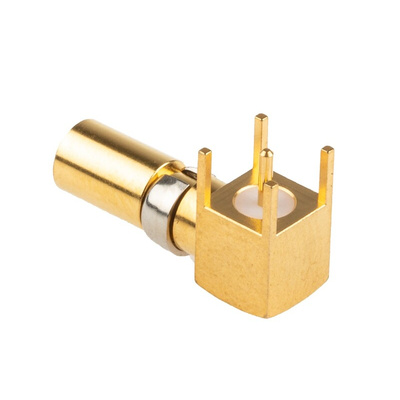

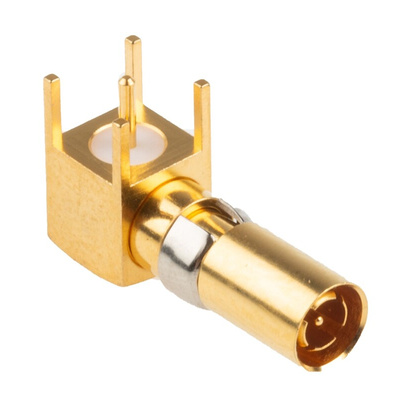

RS PRO Right-Angle Female Gold Copper Alloy DIN Connector Contact

This right-angle female connector contact from RS PRO will create a solid and reliable DIN connection for your computer system or electronic equipment. It's corrosion-resistant thanks to its gold-plating, and the copper alloy contact material gives it increased conductivity. For easy installation, simply solder or crimp the connector to a coaxial cable using the through-hole mounting.


This contact features a right-angled orientation, making it suitable for use in 90° adaptors. This means it can connect plug-in cards and backplane wiring or two parallel printed circuit boards (PCBs).


As part of our RS PRO range, this product has been tested for quality and reliability. You'll find this type of DIN connector used in telecommunications, measurement and control applications and data management.

Features and Benefits

• Suitable for use with a DIN41612 type M female connector


• Maximum contact resistance of 2.7 mΩ


• Current rating of 2 A


• Operating temperature range of -55°C to +125°C


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS Pro Datasheet
