FCMR38-12-12-A, Ruland Beam Coupling, 38mm Outside Diameter, 12mm Bore, 57.2mm Length Coupler

Aluminium Flexible Shaft Couplings

Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.

Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable

Note

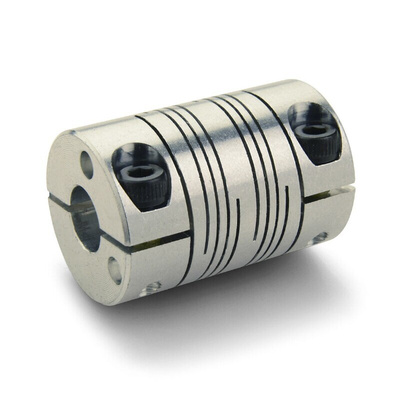

The coupling illustrated shows the Clamp style fixing.

FCMR/FSMR Six beam and four beam Couplings Data Sheet

FCMR38-12-12-A-Datasheet

Ruland Coupling Comparison Guide
