ATS01N222QN, Schneider Electric Soft Starter, Soft Start, 11 kW, 415 V ac, 3 Phase, IP20, Устройство плавного пуска

Schneider Electric Soft Starters - Altistart 01 Series

Created and designed to operate as a torque limiter on starting, or as a soft start or soft stop unit for asynchronous motors. This range of soft starters enhances the starting performance of asynchronous motors by allowing them to start smoothly, gradually and in a controlled manner. They are compact and easy to install, the Altistart 01 series can be mounted side by side.

Features & Benefits

• Prevents mechanical shocks


• Reduces wear and tear


• Reduces the amount of maintenance work


• Reduces production town time which in turn keeps production level up


• Because the Altistart 01 series limits the starting torque and current peas on starting machines which do not require a high starting torque, it is the perfect solutions for applications such as conveyors, pumps, fans, compressors, small cranes, conveyor belts and much more


• Complies and adheres to IEC/EN 60947-4-2, carries UL, CSA, C-Tick, CCC certifications and e marking


• There are three ranges that create the Altistart 01 series, these are ATS 01N1, ATS 01N2 and ATSU 01N2

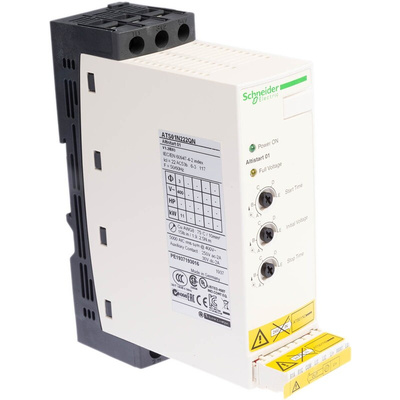

Schneider Electric Soft Starter, Voltage Ramp Start, 22A Current Rating - Altistart 01 Series - ATS01N222QN

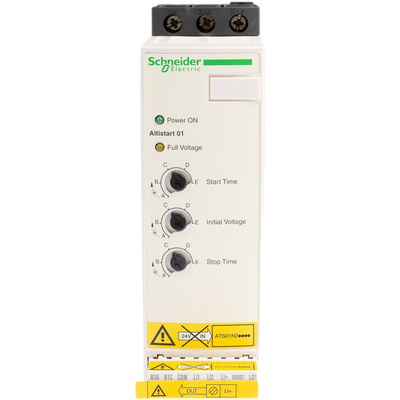

Set your wheels in motion with this soft starter from Schneider Electric. It steadily ramps up the supply voltage to an asynchronous motor until it reaches full power, preventing damage and allowing you to stay in control of your machinery. You can choose a start and stop time between 1 and 10 seconds to suit your application. Selecting the duration and initial voltage is simple, as you simply twist the dials on the front of the starter. This means it's a doddle to get conveyors, pumps and compressors up and running smoothly.

Features & Benefits

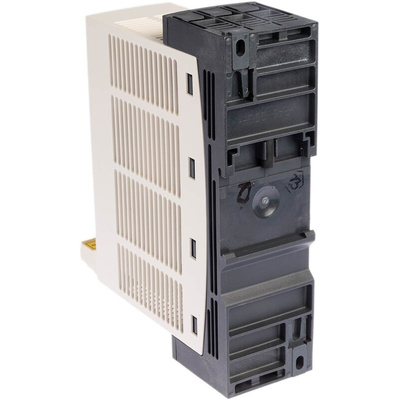

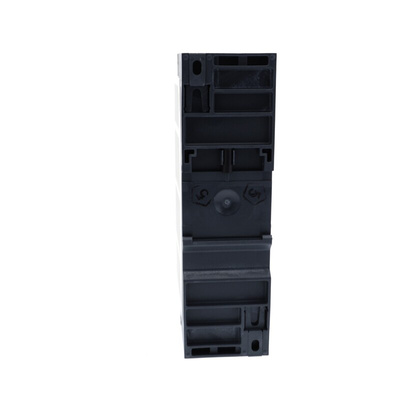

• Rear clip and mounting holes mean it fits onto a DIN rail or plate
• LEDs let you know when the power's on and your motor's at full voltage
• Integrated bypass helps it to work quietly and efficiently
• Compact dimensions of 154 (L) x 45 (W) x 131mm (D) mean it has no trouble fitting in your control cabinet

Applications

• Industrial automation
• Water treatment plants
• Sawmills
• Construction industry

Does this soft starter perform well in harsh temperatures?

As the unit works in temperatures between -10°C and +40°C without derating, you can depend on it in challenging conditions.

Altistart ATS01N2 Datasheet

ATS01N222QN Datasheet

Catalogue - Altivar Soft Starter ATS01
