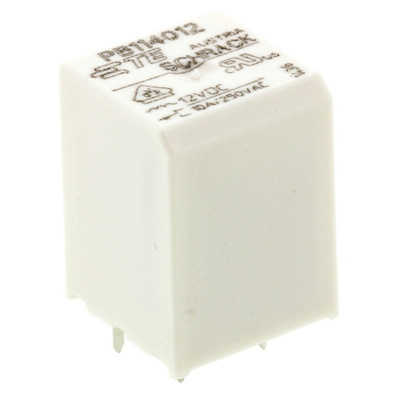

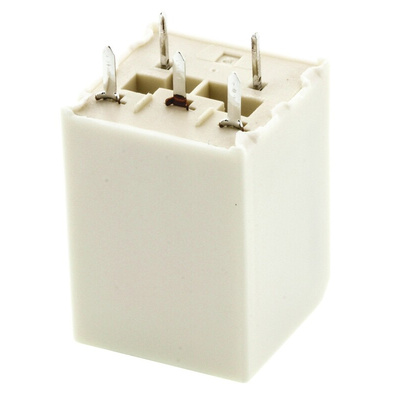

PB114012, TE Connectivity PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT, Реле

TE Connectivity Miniature Power PCB Relay - PCB Series

PB series miniature power PCB through hole mount relays with nickel silver 90/10 cadmium free contacts and a standard class F coil system. These 10A PCB series miniature power PCB relays have a compact and simple design that offers high process security and have resistance to heat and fire according to EN60335, par. 30. Typical applications for these PB series power relays include white goods, small home appliances and heating and temperature controllers.

Compact design PCB power relay
Coil power: 360mW
Rated switching voltage: 240Vac
Clearance/creepage: ≥0.75mm
Isolation coil to contact: 2500V
Temperature range: –40 to 85°C
Dimensions: W15mm, D15mm, H20mm

Approvals

VDE

TE Connectivity Mini SPDT Non-latching Relay

The TE Connectivity PB series through-hole mount miniature power non-latching relay has a contact configuration of SPDT. It is actuated with 12VDC coil voltage and 10A switching current. This relay has nickel silver 90/10 cadmium-free contacts and a standard class F coil system. Also, it has a compact and simple design that offers high process security and have resistance to heat and fire.

Features and Benefits

Coil power is 360mW
Coil resistance is 400ohm
Isolation coil to contact is 2.5kVrms
Operating temperature ranges between -40°C and 85°C

Applications

Heating and temperature controllers
Small home appliances

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
