Elkay Electrical 3 Pole IP68 Rating Cable Mount Female, Male Mains Inline Connector Rated At 16A, Разъем

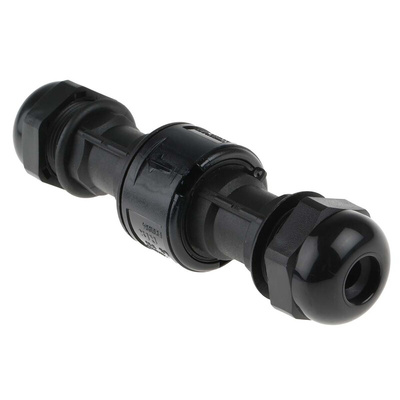

Elkay Electrical Mains Inline Connector

The Elkay Electrical 3-pole male/female, cable mount mains inline plug/socket connector has an electric voltage rating of 250V and current rating of 16A. The cable entry points offer high cable retention and prevent cable twist during installation. The standard cable acceptance ranges between 8mm and 13mm in diameter.
Note:
If power is being distributed and controlled from a fixed installation, it may be more appropriate to mount products into an enclosure.

Features and Benefits

Easy to use
Screw termination
Mounted easily without special tools
Positive keyways to prevent misassembly
Collar mechanism allows fast connection or release of the connector
Protection sealing caps

Applications

Power tools
Lighting

Certifications

IEC 61984:2001
IP68 rated
