2V1-7F-11-87, APEM, 2 Way Joystick Switch IP65 Rated, 250V ac, Джойстик-переключатель

4791564
Номер производителя: 2V1-7F-11-87Производитель: APEM
Цена за шт.
7311.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 6726.00 руб. 6579.00 руб. 5994.00 руб. 5484.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

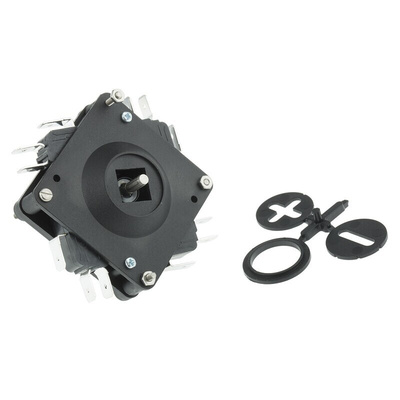

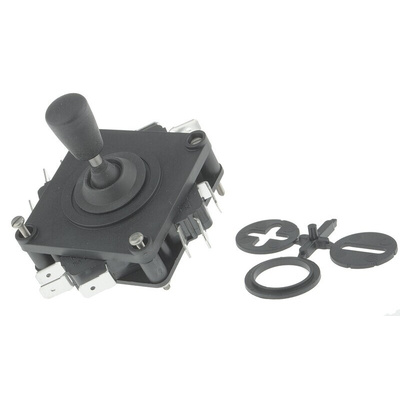

Microswitch Joystick, V3 and V4

The V3 joystick (see stock no: 479-1564) is a larger assembly fitted with four V3 changeover microswitches, while the V4 Joystick (see stock no: 479-1570) is a smaller assembly fitted with four V4 changeover microswitches. The joystick can be moved anywhere within its travel limits, and depending on its position none, one or two (neighbouring) microswitches will be activated.

Both V3 and V4 joystick versions are panel or surface mounted, and feature a rubber gaiter at the stick base to seal the mechanism against the ingress of dirt. They are also supplied complete with a circular panel bezel and two joystick guide inserts for limiting the joystick movement to single and dual axis.

Features and Benefits:

• Solder lug terminals for straight-forward installation
• Surface or Panel Mounting
• High degree of environmental protection
• Suited to industrial environments

Техническая спецификация
pdfCompact Switch Joysticks, 1000 Series - datasheet
Диапазон рабочих температур:
-20 → +50°C
Количество осей:
2
Механический ресурс:
5000000Операций
Номинальное напряжение контакта:
250В перем. тока
Номинальный ток контакта:
16 A при 250 В перем. тока
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-20°C
Степень защиты IP:
IP65
Тип клеммы:
Припой
Ход джойстика:
±12 °
