APEM Microswitch Joystick

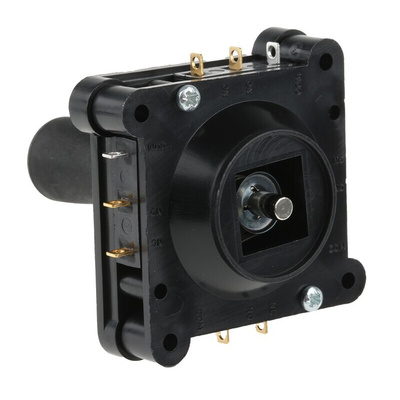

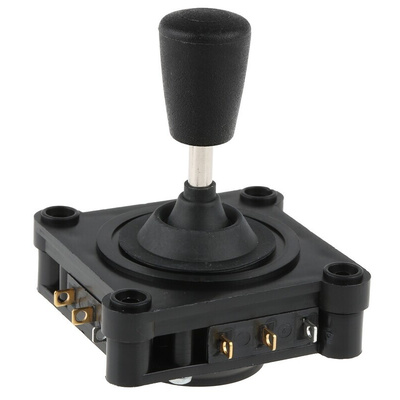

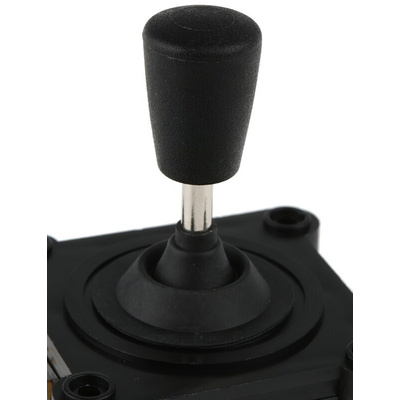

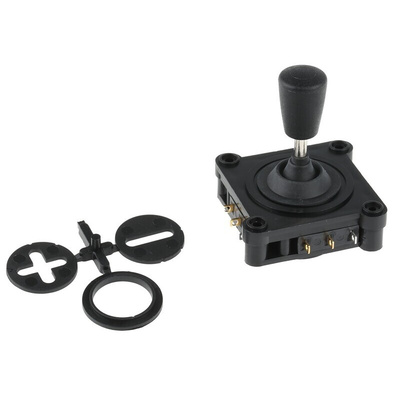

The APEM 2 way momentary microswitch joystick has an operating life of 5000000 cycles and contact electrical current rating of 6A and voltage rating of 250VAC. It is a smaller assembly fitted with four V4 changeover micro switches. This 2-axes joystick can be moved anywhere within its travel limits and depending on its position none, one or two (neighbouring) microswitches will be activated. Both, V3 and V4 joystick versions are panel or surface mounted and feature a rubber gaiter at the stick base to seal the mechanism against the ingress of dirt. They are also supplied complete with a circular panel bezel and two joystick guide inserts for limiting the joystick movement to a single and dual-axis.
Features and Benefits
Contact is made of gold
Contact voltage rating is 250VAC
Operating temperature ranges between -20℃ and 50℃
Solder-lug terminals for straightforward installation
Provides a high degree of environmental protection
Suitable for industrial environments
Certifications
IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007ss
Compact Switch Joysticks, 1000 Series - datasheetDatasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
