XCSM3902L2, Telemecanique Sensors XCSM Series Plunger Interlock Switch, 2NC/1NO, IP67, IP68, Metal Housing, Концевой выключатель

Telemecanique Sensors Safety Limit Switch

The Telemecanique Sensors XCSD series safety limit switch has a plunger actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection and positive opening switching function. This switch is designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with an actuator operated guard switch. When used on its own, it is always installed in positive mode but if combined in pairs then one switch in is positive mode and the other is in negative mode.
Note:
With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Features and Benefits

Snap action contacts

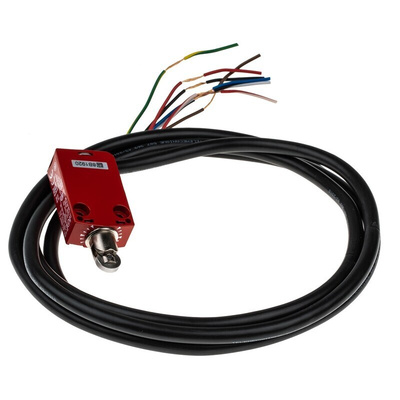

Cable length is 2m

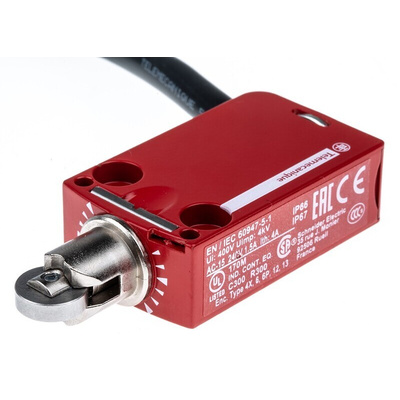

Miniature/compact red metal housing, pre-cabled
Plastic protective cover, secured by 5-lobe socket head safety screw
Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°
Linear movement switch (plunger) has an on-end approach only

Minimum mechanical life of 10000000 cycles

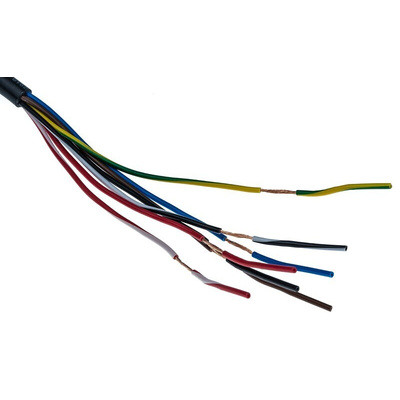

Cable composition is 7 x 0.5mm²

Certifications

IP66 rated
IP67 rated
IP68 rated
EN1088
EN/IEC60204-1
EN/IEC60947-5-1
UL508
approved
CSAC22.2 No 14 certified
