RS PRO Solder Sucker, 190 mm Length, Оловоотсос

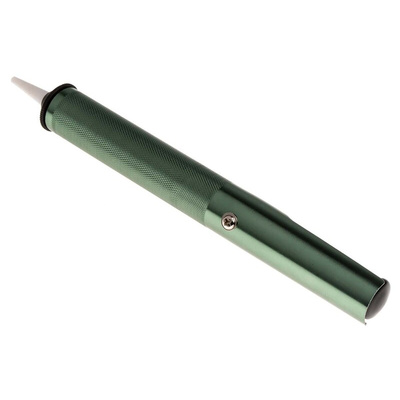

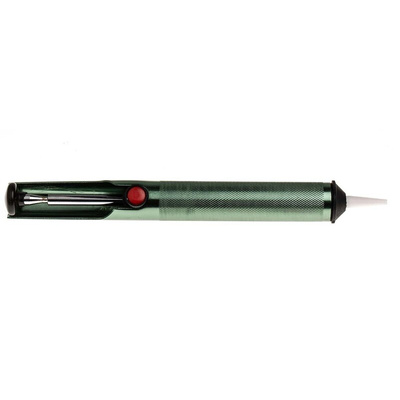

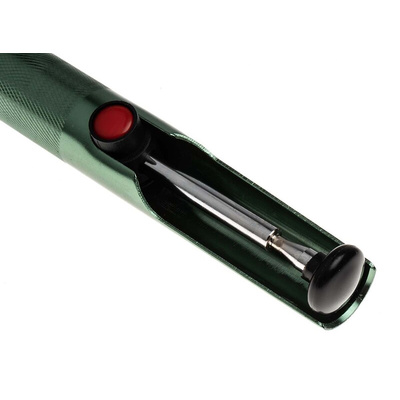

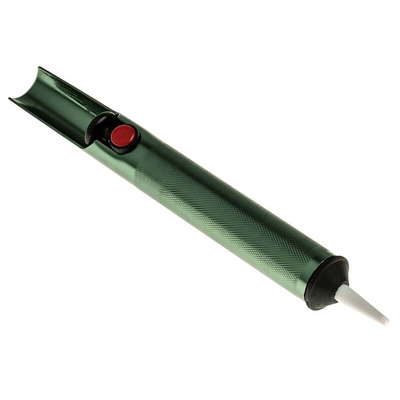

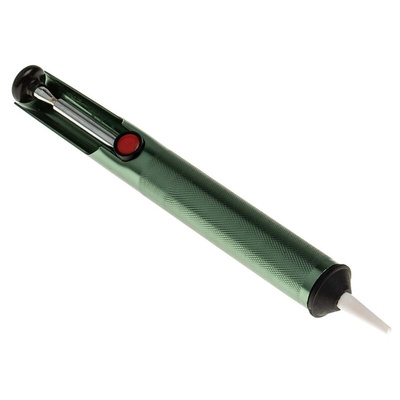

RS PRO Solder Sucker De-soldering Gun.

The RS Pro Solder Sucker de-soldering gun is a standard model hand operated tool. The solder sucker is a professional and quality tool used to cleanly remove solder plus providing joint dis-assembly. To assist you in removing solder the solder sucker picks up the debris by sucking it up via a spring-loaded piston, released by a push button and re-primed by a plunger. Extraction springs are located outside the vacuum chamber and this helps to prevent the solder sticking and prolongs the life of the solder sucker. This RS PRO model has a PTFE nozzle and the main body of the desoldering gun is made from aluminium.

Features and Benefits.

•Solder sucker, desoldering gun.
•Standard model.
•Hand operated.
•Provides efficient solder removal and joint dis-assembly.
•Fast sucking action via the spring loaded piston.
•Extraction springs are outside of the vacuum chamber.
•Prevents solder sticking.

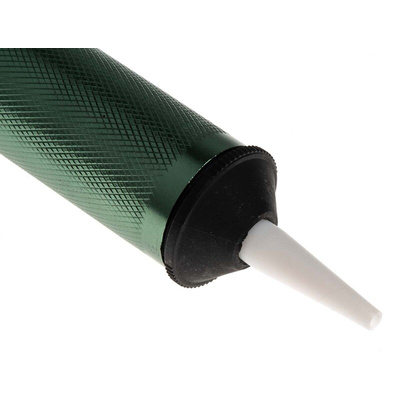

•PTFE Micro Nozzle (polytetrafluoroethylene) Spare nozzle stock number 4794204, spare washer stock number 4795768).
•Main body made from aluminium.

What is PTFE?

•Insulates.
•Resistant to wear.
•Less friction.
•Used with high temperatures.
•Chemically resistant.

PTFE – Polytetrafluoroethylene. A very stable material used in various industries and applications. A stable and hard wearing material.

How to use a Solder Sucker De-soldering Gun Pump.

•Heat up the solder to be removed with your soldering iron.
•Press the plunger of the solder sucker.
•Place to desoldering pump against the solder to be removed.
•The piston will then suck up the solder to be removed.
•Repeat all of the above as many times as required.
•When finished remove and dispose of the waste solder from the pump.

Solder Sucker De-soldering Gun Dimensions.

•Length 190 mm.
•Barrel diameter 20 mm.
•Nozzle length 20 mm.
•Tip outside dimeter 3 mm.
•Tip inside diameter 1.5 mm.
•Weight 56 g.

Safety Warning.

•This Solder sucker desoldering gun should not be used on LIVE electrical circuits, it provides no protection from electric shock.
•Always protects your eyes when using the desoldering gun with industry approved eye protection to standards CE, OHSA and ANSI.
