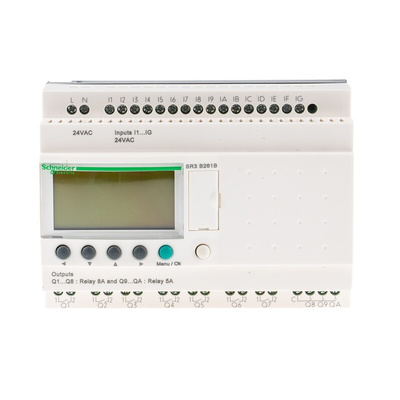

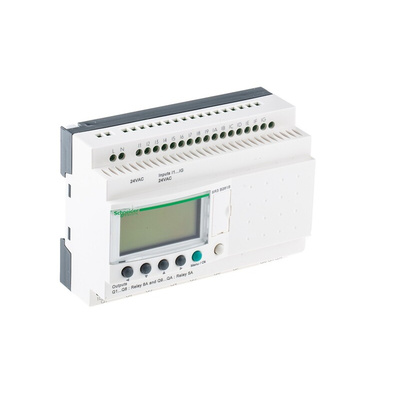

SR3B261B, Schneider Electric Zelio Logic Series Logic Module, 24 V ac Supply, Relay Output, 16-Input, Discrete Input, Логический модуль

Schneider Electric Logic Module, 10 Outputs, 24V AC Supply Voltage - Zelio Logic Series - SR3B261B

Manage and automate your industrial equipment with this logic module from Schneider Electric. As it has 16 input ports and 10 output channels, it can control multiple functions on your machines at the same time. It does this by receiving signals from sensors and transducers and issuing commands according to the set response to those signals. You can monitor and configure this logic controller on-site using its integrated operating panel, or remotely using Windows-based Zelio Soft software on your computer.

Features & Benefits

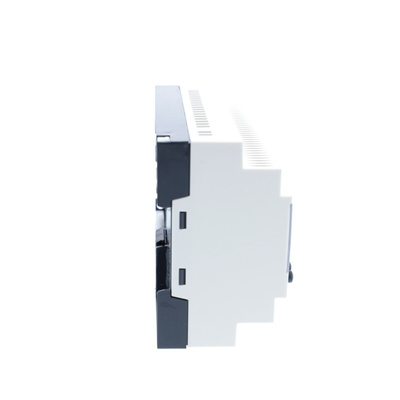

• Compact dimensions of 125 (L) x 90 (W) x 59.5mm (D) for space efficiency in tight enclosures
• Wide operating temperature range of -20°C to +55°C for use in demanding environments
• 10-year backup memory for long-term reliability

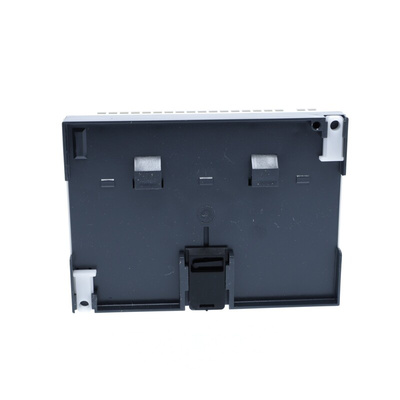

• Quick and tool-free DIN rail mounting for quick and easy installation

Applications

• Robotics and automation
• Pharmaceutical industries
• Heating, ventilation and air-conditioning (HVAC) systems

How do I terminate cables to the ports of this controller?

This logic controller features screw terminals for the connection of input and output signal wires. Simply unfasten the terminals with a screwdriver and insert the cables into them, then screw them back on to achieve a firm grip on the conductors.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
