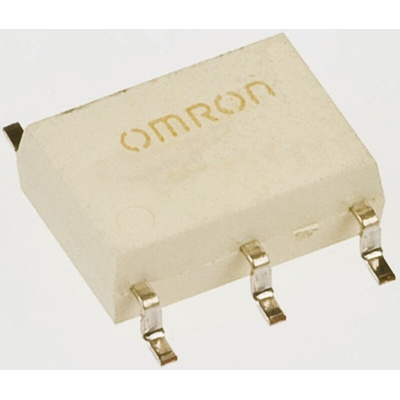

G3VM-61H1, Omron G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3 V Control, Реле

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-61H1 MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-61H1 MOS FET relay is part of the upgraded G3VM-S1 series offering a wealth of benefits required from maintenance free relays. SPST-NO (normally open), surface mounted package relay with 6-pins. This series relay is designed for switching minute and analogue signals.

Features and Benefits G3VM-61H1 SSR – Solid Sate Relay.

•MOS FET Solid state relay.
•Surface mounted relay terminals.
•Contact form SPST-NO 1a (normally open).
•SOP6 (small outline).
•6 Relay terminals.
•Load voltage 60 V.
•Load current 400 mA max.
•Maximum resistance with output ON 1 Ω.
•Current leakage when relay is open 1000 nA max.
•Capacitance between terminals 130 pF.
•SSR -Turn ON time 2 ms max.
•SSR -Turn OFF time 0.5 ms max.
•Dielectric strength between I/O 1500 Vrms.
•Switches analogue signals.
•Single pole, single throw.
•RoHS Compliant.

Additional Features G3VM-61H1 General Purpose SSR – Solid State Relay.

•Long operational life.
•Small leakage current.
•SSR has excellent shock resistance.
•High insulation.
•Silent operation.
•High-speed switching.
•Control the micro analogue signal.
•Photo-LED input.
•Status output.
•Compact
•Operating temperature, ambient -20°C to +65°C, no icing or condensation.
•Soldering temperature 260°C.

Other Application Examples.

•Test and measurement equipment.
•Communication equipment.
•Semi-conductor test equipment.
•Broadband systems.
•Data loggers.
•Amusement systems.
