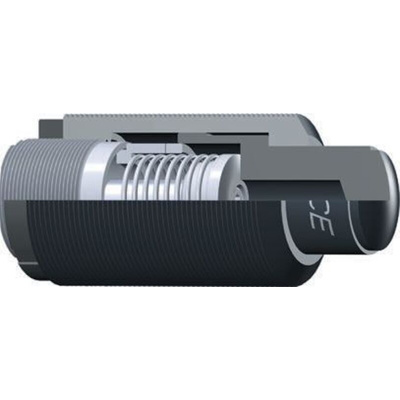

ACE Pneumatic Shock Absorber Side Load Adapter, BV 20 SC

BV Series Side Load Adaptors

Compatible with ACE Adjustable, Miniature and Self-Compensating range of shock absorbers
Side load impact angles from 3° to 25°
Reduces wear on the rod bearing s and extends the life of the shock absorber
Application where rotating impact motion causes high side load force on the piston rod

Note

The BV adaptor can only be installed on shock absorbers without rod end button.

Miniature Adjustable - Accessories

These accessories, finished in black oxide, are compatible for use with the Ace Miniature ranges of shock absorbers.

Datasheet

Shock Absorber Accessories Dimensions
