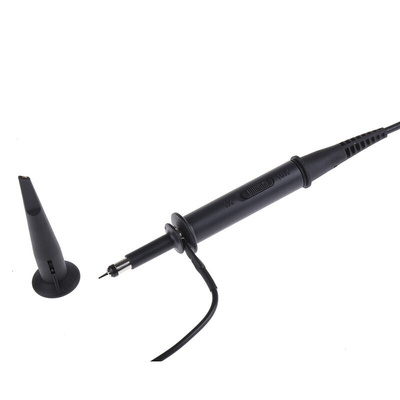

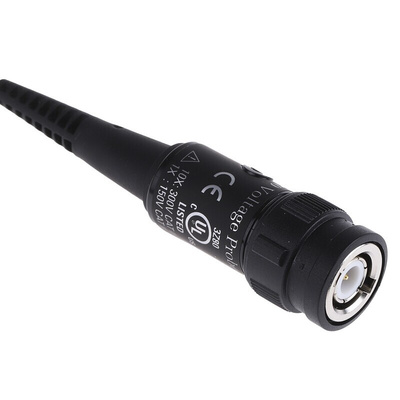

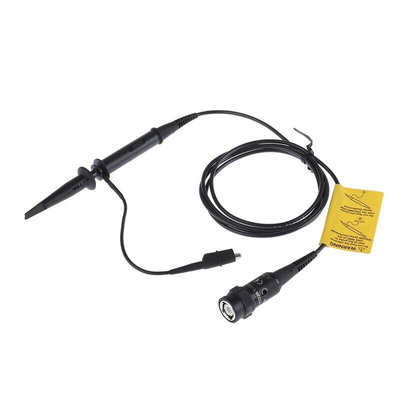

Tektronix P2220 Compact Passive Oscilloscope Probes
The Tektronix P2220 passive voltage oscilloscope probe has a bandwidth of 200MHz and permits selection of 1x or 10x attenuation, using a switch located on the probe head. The probe also provides floating measurement capability up to 30 VRMS with TPS2000 series oscilloscopes only. The P2220 probe is compatible with TDS200, TDS1000, TDS1000B, TDS2000, TDS2000B and TPS2000 series oscilloscopes.
Features and Benefits
Bandwidth for 10:1/1:1 is 200MHz/6MHz
Attenuation ratio is 10:1/1:1
Input impedance for 10:1/1:1 is 10Mohm/1Mohm
Rise time for 10:1/1:1 is <2.2ns/<50ns
Safety category voltage is 150V, 300V
Length 1.5m
Applications
The P2220 passive voltage probe provides reliable testing for basic oscilloscope measurements. It can be used for:
Relative low frequency measurements
Low-frequency computer and telecom measurements
Power supplies
Low frequency amplifiers
Certifications
UL3111-1
CSA1010.1
EN61010-1
EN61010-2-031
IEC61010-2-031
CAT II 15 V
CAT II 300 V
Supplied with
type":"Supplied with",

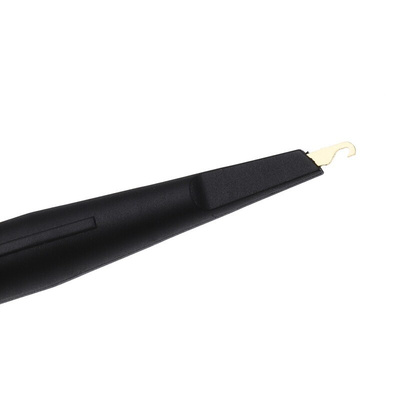

Retractable hook tip
6inch ground lead
Adjustment tool
Marker band set
Instruction manual
