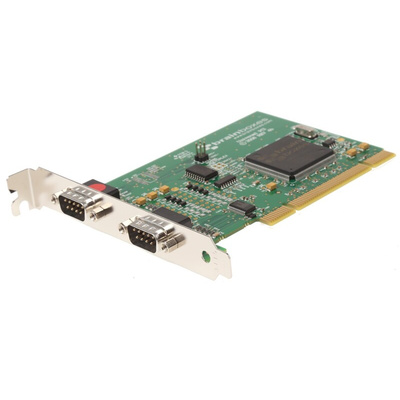

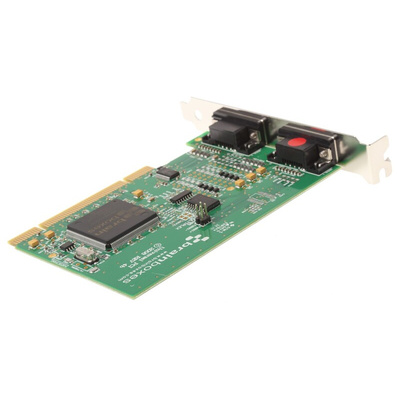

UC-357, Brainboxes 2 Port PCI RS232, RS422, RS485 Board, Плата

Brainboxes Serial Boards

The Brainboxes Universal PCI provides one RS232 port and one RS422/485 serial port. It has data transfer rates up to 921,600 baud rates and the 128byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Universal PCI is fully compatible with both, 3.3V and 5V PCI slots.

PCI Bus: High performance I/O slot in every desktop Pentium, Pentium (II) and Pentium Pro PC. PCI provides improved performance to all running applications by freeing up the CPU. PCI cards are detected and configured automatically by the PC to avoid conflicts in address and interrupts. PCI cards automatically implement a shared interrupt system so maximising the use of precious system resources. The Windows and DOS device drivers supplied with each serial card from RS reads the PCI assigned setup and configures your system accordingly.

Supplied with DOS, Windows 3. X, 95, 98, NT, Me, XP and 2000 drivers

Features and Benefits

16950 UART
Auto-gating for efficient use in RS-485 half duplex mode under multi-tasking operating systems
Two 9-pin D connectors on the blanking plates
Plug and play PCI interface
Drivers for all the popular operating systems
Sample programs, test and terminal software
Lifetime support
Operating Distance RS422/485 Standard (4000 ft : 1200 metres) or EIA - RS232 Standard
Flow Control: RTS/CTS DSR/DTR XON/XOFF
Tx/Rx modes: Point to point (RS232), full duplex, half duplex autogating, hardware
Autogating, TxD always/RTS true enabled, RxD always enabled, RxD
RTS true disabled, CTS forced true (RS422/485)

Applications

Automation systems
Scientific instruments
Point of sale systems
Industrial and consumer products

Certifications

WEEE RoHS EMC: CE
