UC-275, Brainboxes 8 Port PCI RS232 Board, Плата

Serial Board- 8 Port RS232

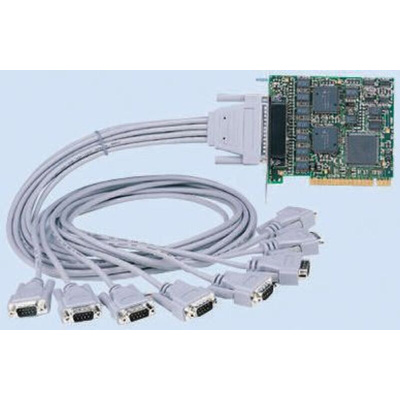

Universal PCI serial board provides 8 RS232 serial ports connected by via 8x25/8x9 pin connector.

8 Port RS232
PCI 3.0
32 byte Tx & 32 byte Rx FIFOs
Data rate up to 115,200 baud
DB9 connector (481-1220)
DB25 connector (481-1668)
Drivers for all popular operating systems
Lifetime warranty and support

PCI Serial Boards/RS-232

PCI Bus: High performance I/O slot in every desktop Pentium, Pentium (II) and Pentium Pro PC. PCI provides improved performance to all running applications by freeing up the CPU.,PCI boards are detected and configured automatically by the PC, avoiding conflicts in address and interrupts. PCI boards automatically implement a shared interrupt system so maximising use of precious system resources.,The Windows device drivers supplied with each serial card reads the PCI assigned setup and configures your system accordingly. Products in this range are supplied with Vista and Windows drivers and are Plug-and Play compatible.,PCI 2.3 requires that all plug-in cards support 3.3V signalling. To support many older systems that use 5V signalling the following Brainboxes products are compatible with both 3.3V and 5V signalling.All the boards in this range also share the same following specifications:

Data bits: 5, 6, 7 or 8
Stop bits: 1 or 2
Parity: Odd, even, mark, none or spaces

UNIVERSAL PCI 8 PORT RS232 with 8 x 9 Pin Cable UC-279/8 x 25 Pin Cable UC-275 Data Sheet
