600-R-D-R-0-1, Gefran 600 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 3 Output Relay, 100 V ac, 240 V ac Supply Voltage ON/OFF, Регулятор температуры

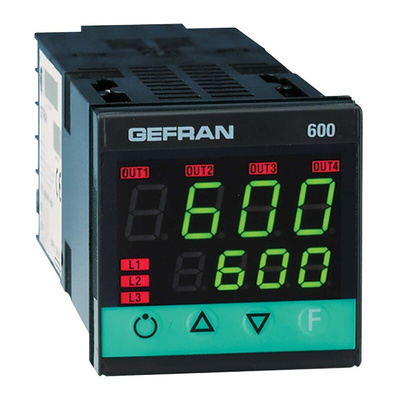

Gefran Temperature Controller

The Gefran 600 series temperature controller has supply voltage ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has 3 relay outputs where first and third outputs are relay whereas, the second output is Logic I/O. The main input for the process variable is universal and second auxiliary analogue input from the current transformer is also available. The instrument is supplied with an "easy" configuration with just a few parameters (only those for the model ordered and essential for controller operation). A PC programming kit is available for even simpler configuration, composed of a cable and a guided program for Windows environment.

Features and Benefits

Accuracy better than 0.2% F.S under nominal conditions
Alarm indication for probe short-circuit or heater break
Auxiliary input for CT (TA) (50mAac)
Hot/cold function with cooling fluid selection
Double line display for setpoint and measurement.
Functions: auto-adaptive, auto-adjustable, Manual/Auto, Bumpless.
Optically isolated RS485 serial line supporting CENCAL or MODBUS RTU protocol
Supports Self-tuning, auto-tuning, soft-start & bump less man/auto function
Universal input configurable from faceplate

Applications

Climatic cells and test benches
Cooling plants
Die-casting plants
Dryers for ceramics and construction parts
Extrusion lines
Food processing pants
Heat punches
Injection presses for plastics
Ovens
Packaging machines
Packing machines
Painting plants
Polymerization and synthetic fibre plants
Presses for rubber

Certifications

CE certified
EN 61000-6-2
EN 61000-6-3
EN 61010-1
IP65 rated
UL approved

Datasheet 600 series
