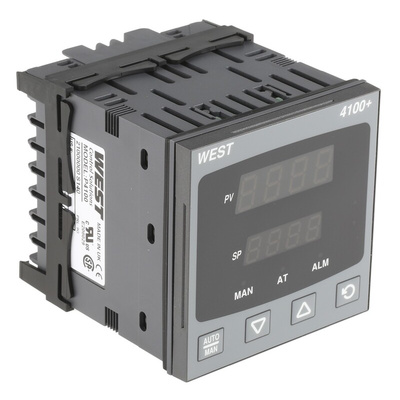

P4100-2100-0000, West Instruments P4100 PID Temperature Controller, 96 x 96 (1/4 DIN)mm, 1 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

West Instruments Temperature Controller

The West Instruments P4100 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 96mm and a height of 96mm. It has a thermocouple input and relay output. This 4100 series controller includes remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration, along with a 24VDC transmitter power supply. It is designed to incorporate improvements, save time, reduce inventory stock and virtually eliminates the likelihood of operator errors. The 4100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money.

Features and Benefits

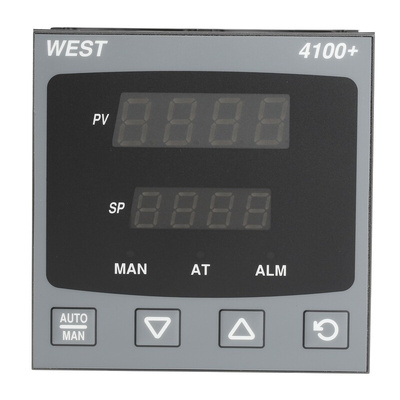

Red upper and lower display colour
Adjustable hysteresis
Auto-hardware recognition

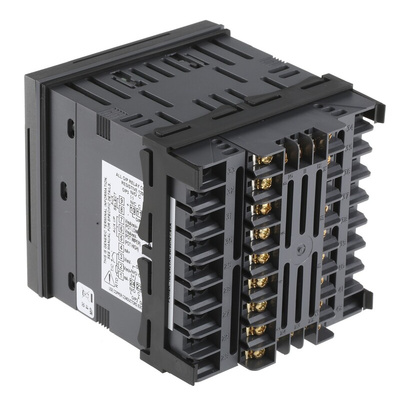

Backward compatible panel cut-out, housing and terminal wiring capability
Dual set points with optional remote selection
Expanded user-selectable operator modes
Faster communication speeds and more security options
Improved easy to use HMI
Improved windows PC configuration software
Jumper-less input configuration
Optional 10V SSR driver
Optional analogue remote set point input
Plug in output module allows installing just the functions needed
Process and loop alarms
User-selectable plug-and-play output cards

Certifications

CE certified
IP20 rated
IP66 rated
UL listed
