P4100-2700-0000, West Instruments P4100 PID Temperature Controller, 96 x 96 (1/4 DIN)mm, 1 Output Linear, 100 → 240 V ac Supply Voltage, Регулятор температуры

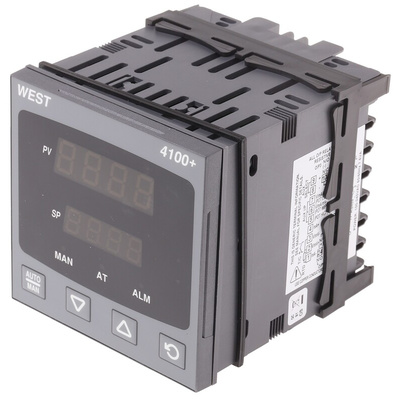

West 4100+ Temperature Controller

The West 4100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels.

The 4100+ controller is an evolved product from the N4100. The product benefits from having more versatile features and user-friendly functionalities. These features include remote setpoint inputs, digital inputs, plug in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24 V dc transmitter power supply.

It has been designed to incorporate improvements, saves time, reduces inventory stock and virtually eliminate the likelihood of operator errors.

The 4100+ provides a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.

• Dual setpoints with optional remote selection
• Plug in output modules allows installing just the functions needed
• Expanded user-selectable operator modes
• User-selectable plug-and-play output cards
• Process and loop alarms
• Adjustable hysteresis
• Optional 10 V SSR driver
• Optional analogue Remote Setpoint Input
• Improved Windows PC configuration software
• Improved easy to use HMI
• Jumperless input configuration
• Auto-hardware recognition
• Faster communication speeds
• More security options
• Backward compatible panel cut out, housing and terminal wiring capability

West Instruments Plus Series Temperature Controllers

West Temperature Controller Calibration Procedures

Datasheet

Brochure

Manual - Full

Manual - Concise

Accessory Guide
