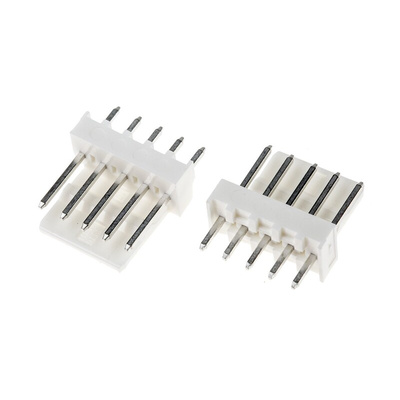

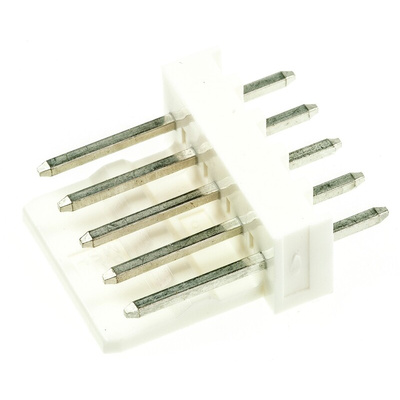

22-27-2051, Molex KK 254 Series Straight Through Hole Pin Header, 5 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Molex KK 2.54mm Pitch PCB Headers with Straight Friction Lock, 6410 Series

Molex KK 254 PCB wire to board vertical headers with a straight friction lock to ensure secure retention when mated making them ideal for use in high vibration environments. The housings of these KK 2.54mm wire to board PCB header connectors are made from red UL 94V-0 nylon and the contacts are tin plated brass. These KK 6410 series 2.54mm headers mate with 2695 and 6471 series crimp terminal housings with locking ramps and 7880 series high pressure housings.

Approvals

UL (E29179) and CSA (LR 19980)

Molex Pin Header, Tin-Plated Brass Contacts, Flame-Retardant - KK 254 Series - 22-27-2051

Use this pin header from Molex to create secure electrical connection points on a PCB. Its five circuits mean you can wire multiple devices using one unit, which saves you time and makes the most of board space. Thanks to its friction lock, you're assured of secure retention when it's mated to a compatible part. For safety, this pin header is flame-retardant, so it's unlikely to contribute towards the spread of a fire.

Features & Benefits

• Low halogen, so releases minimal toxic fumes when hot
• Non-conductive nylon body cuts out the risk of electric shocks
• Low-resistance tin-plated contacts offer reliably high conductivity

Applications

• Security centres
• Transportation industry
• Electronics manufacturing
• Industrial automation

How do I attach this pin header to a circuit board?

The connector has PC tails that let you easily solder it to a circuit board.

Datasheet

Line Drawing

Specification Sheet - 2.54mm Center KK Connectors
