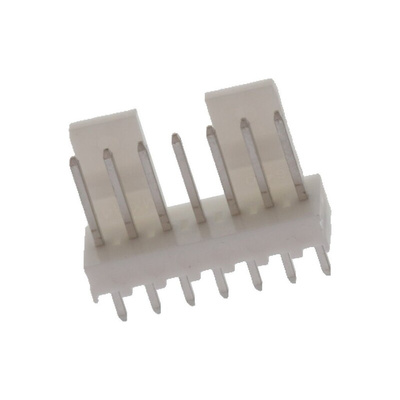

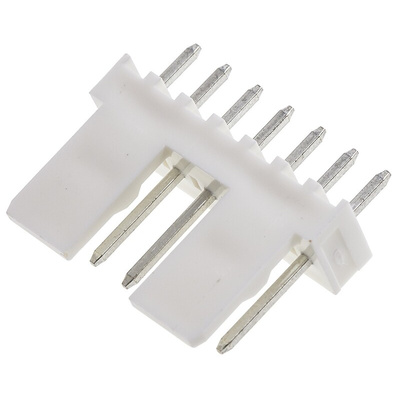

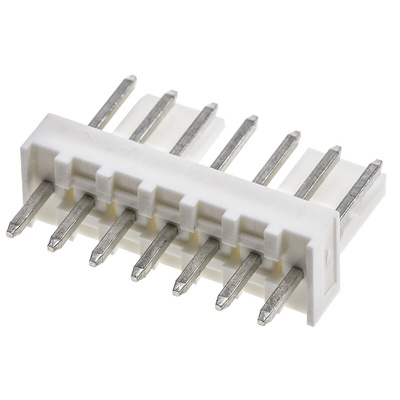

22-27-2071, Molex KK 254 Series Straight Through Hole Pin Header, 7 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Molex KK 2.54mm Pitch PCB Headers with Straight Friction Lock, 6410 Series

Molex KK 254 PCB wire to board vertical headers with a straight friction lock to ensure secure retention when mated making them ideal for use in high vibration environments. The housings of these KK 2.54mm wire to board PCB header connectors are made from red UL 94V-0 nylon and the contacts are tin plated brass. These KK 6410 series 2.54mm headers mate with 2695 and 6471 series crimp terminal housings with locking ramps and 7880 series high pressure housings.

Approvals

UL (E29179) and CSA (LR 19980)

Molex Pin Header, Vertical Orientation, 2.54mm Pitch - 6410 Series - 22-27-2071

Make more connections to your PCB with this 7-way pin header from Molex. Simply solder the unit to your board and use each of its pins to connect a new circuit with a current of up to 4A. Its maximum voltage rating of 500V assures you it's safe to use in powerful electrical systems. As each pack contains 10 headers, you'll have plenty on hand for wiring up complex systems.

Features & Benefits

• Made of durable resin to provide you with a long service life
• Light 0.78g weight doesn't put a strain on your PCB
• Through-hole mounting style achieves a strong and sturdy connection

Applications

• Automotive technology
• Electronics evaluation
• Computer equipment

Can I use this header in challenging environments?

Yes. This hardy device withstands temperatures between -40°C and +80°C, meaning it's ideal for use in demanding work areas.
