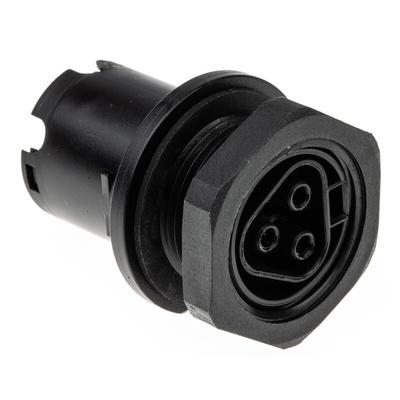

96.031.1053.1, Wieland RST20i3 Series Circular Connector, 3-Pole, Female, Cable Mount, 20A, IP68

Wieland RST Lighting Connector

The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.

Features and Benefits

• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
• Connectors have M25 or M20 threads, with spring termination, for solid cable wire size between 0.5 to 2.5 mm² and stranded cable wire size between 0.5 to 1.5 mm²
• Panel mount with 2 connections for each pole
• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
• Connectors lock together and are self-locking

Applications and Uses:

• Electrical installations
• General network applications
• Switching applications
• Multiphase systems

RST20i3 Lighting Connector

• Female M25 straight angle connector
• For cable diameter 10 – 14 mm
• Rated current of 20A and rated voltage of 250V/400V
• Three pole, turned contacts with spring clamp connection
• Black coding
• IP66/68 degree of protection
• Dimensions: length 46.6 mm, width 35 mm, height 35 mm

Gesis RST Connector Range

UL File E247489
