Wieland RST Lighting Connector
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
• Connectors are cable mount with 1 connection for each pole
• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
• Connectors lock together and are self-locking
Applications and Uses:
• Electrical installations
• General network applications
• Switching applications
• Multiphase systems
Standards
IP 66/IP 68

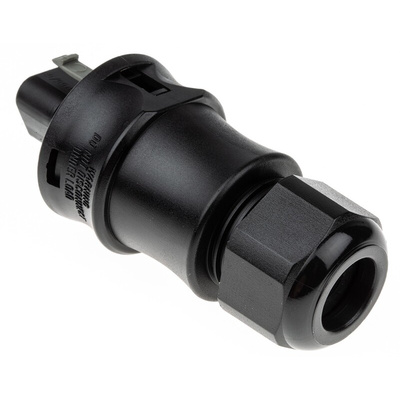

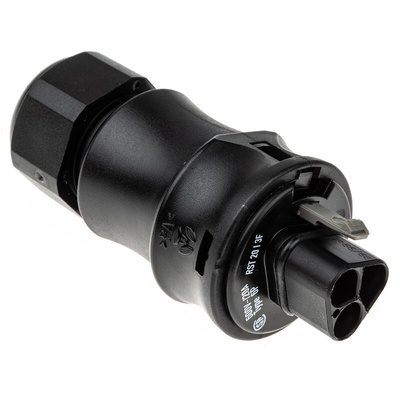

RST20i3 Lighting Connector
• Male straight angle connector
• For cable diameter 6 – 10 mm
• Solid cable wire size between 0.5 to 2.5 mm²
• Stranded cable wire size between 0.5 to 1.5 mm²
• Rated current of 20A and rated voltage of 250V
• Three pole, turned contacts with spring clamp connection
• Black coding
• IP66/68 degree of protection
• Dimensions: length 79.1 mm, width 34.6 mm, height 34.6 mm
Gesis RST Connector Range
Техническая спецификация
