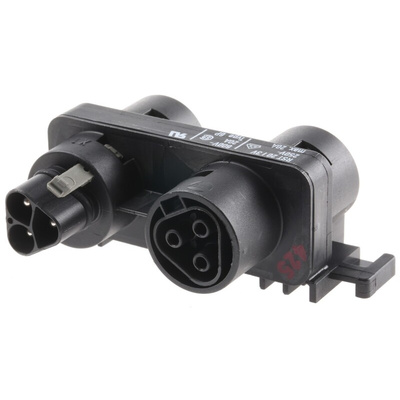

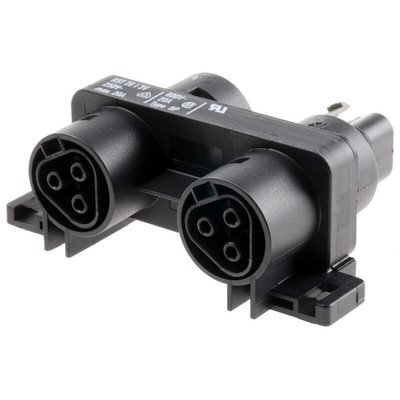

96.030.0153.1, Wieland RST20i3 Series Distribution Block, 3-Pole, Male to Female, Panel Mount, 20A, IP68

Wieland RST Lighting Connector

The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.

Features and Benefits

• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
• Combined distribution blocks for circular connectors are H shaped with 3 poles and turned contacts, 1 input, 3 outputs
• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
• Connectors lock together and are self-locking

Applications and Uses:

• Electrical installations
• General network applications
• Switching applications
• Multiphase systems

RST20i3 Lighting Connector

• Distribution block
• Rated current of 20A and rated voltage of 250V
• Three pole, turned contacts
• Fastening option with mounting lugs
• Black coding
• IP66/68 degree of protection
• Dimensions: length 55.5 mm, width 85.8 mm, height 31.3 mm

Gesis RST Connector Range

UL File E247489

RST20i3 Datasheet
