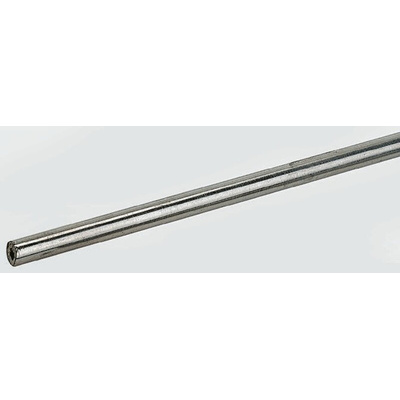

RS PRO Round Stainless Steel Metal Tube, 1/4in OD, 1.8m L, 18SWG Thickness, Труба

RS PRO 316L Stainless Steel Tubing, 1.8 m x 1/4 in OD x 18 SWG

Use this 316L stainless steel tubing from RS PRO when you need a pipe that can withstand water, acids and other chemicals. This versatile component is ideal for everything from food and beverage production to subsea applications.
The tube's steel material is an austenitic alloy, so it has a high molybdenum content that makes it resistant to weld decay and corrosion. It has a hardness of 95 HB (Brinell Scale), which means it's considered mild or low-carbon steel and offers excellent weldability.
This pipe has a maximum working temperature of +300°C, so you can work with it at very high temperatures. This type of tubing is a key component in marine equipment, as well as photographic processing set-ups and food production lines.

Features and Benefits

• Round tube form
• Density of 8 g/cm³
• Hardness of 95 HB
• Dimensions of 1.8 m (L) x 6.35 (W) x 6.35 mm (H)
• Made from 316L grade stainless steel
• Outer diameter of 1/4 inch
• Tensile strength of 485 N/mm²
• Thermal conductivity of 16.3 W/m at +100°C
• Thickness of 18 SWG (Standard Wire Gauge)
