NDL WS, Schmersal Elan Series White Illuminated Push Button Head, 22mm Cutout, IP69K

Push buttons and illuminated buttons, hygiene-‑compliant

Features

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit

Push buttons

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry

Illuminated push button

Please order switching and light elements separately

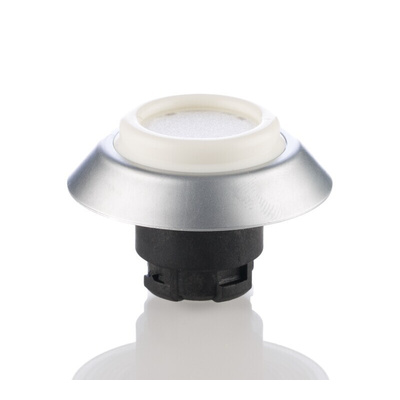

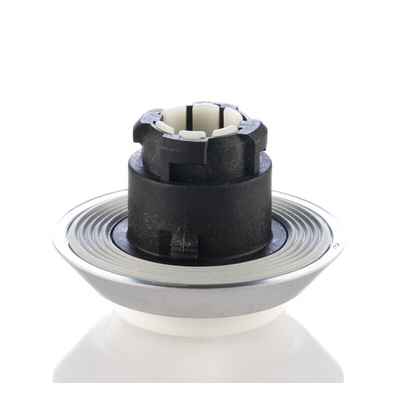

Schmersal White Push-Button Head, Round, 22mm Cutout - Elan Series - NDL WS

Use this push-button head from Schmersal to send operating signals to machinery and equipment. It's quick to mount to a control panel or assembly housing using a mounting flange. The strong ABS (acrylonitrile butadiene styrene) material withstands wear and is resistant to corrosion for long-lasting use. Its wide operating temperature range of -25°C to +80°C makes it compatible with a broad range of environmental conditions for improved versatility. This push-button has an IP69K (ingress protection) rating, which means it's protected against high-temperature and high-pressure water jets to withstand frequent washdowns in hygienic areas.

Features & Benefits

• Fully insulated to prevent accidental shock for improved workplace safety
• Meets IEC (International Electrotechnical Commission) and EN (European Norm) safety standards for low-voltage control and switchgear
• Compact dimensions of 28mm (height) x 44.5mm (open diameter) for use in areas where space is limited
• Meets RoHS (Restriction of Hazardous Substances) standards, meaning it contains only minimal amounts of any harmful materials

Applications

• Food and beverage industry
• Food storage facilities
• Hospitals

Can this push-button be illuminated?

Yes, you can install an LED (light-emitting diode) element prior to mounting the push-button for an illuminated effect.
