NDT GN, Schmersal Elan Series Green Push Button Head, 22mm Cutout, IP69K

Push buttons and illuminated buttons, hygiene-‑compliant

Features

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit

Push buttons

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry

Illuminated push button

Please order switching and light elements separately

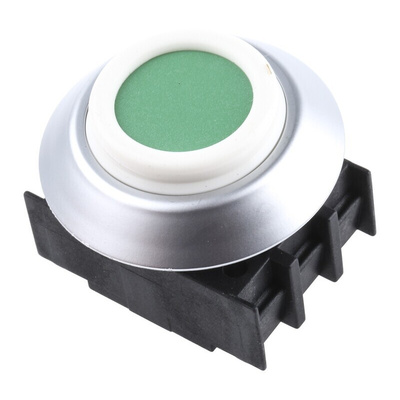

Schmersal Green Push-Button Head, Round, 22mm Cut-Out - Elan Series - NDT GN

Safely switch machinery on or off with this Schmersal push-button head. Its bright green colour contrasts with the white bellows and silver front ring, making it highly visible for greater ease of use. As it's non-latching, it operates machinery when pressed and cuts off power to the machinery when released, making it a good choice for use with equipment that requires frequent stops and starts. It's supplied with a mounting flange for easy installation on the front of a machine panel.

Features & Benefits

• ABS (acrylonitrile butadiene styrene) plastic housing offers resistance to impact for use in heavy-duty environments
• Wide operating temperature range of -25°C to +80°C for use in demanding settings
• Low height of 11mm and light weight of 25g to reduce bulk on your panel
• Fully insulated for greater electrical safety

Applications

• Food and beverage processing
• Pharmaceutical industry
• Cosmetics production

Can I use this button in damp environments?

This button has an ingress protection rating of IP69K, which means it can withstand exposure to water at high temperatures and high pressures. This makes it a good choice for use in environments where equipment must be carefully sanitised and is subject to frequent washdowns.

Pushbutton NDTGN Data Sheet

Brochure - Command and signalling devices

Instruction Sheet - Command and signalling devices
