ELDE.N GN 24, Schmersal ELDE.N Series Connector & Terminal Block, 3-Way, 8A, Screw Down Termination, Клеммный блок

Contact and light elements, hygiene-compliant

Contact element

2-pin

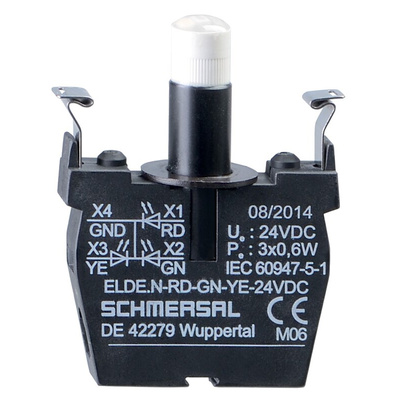

LED light element

Suitable for NDL illuminated buttons

Light element with Ba9S socket

Suitable for NME / NMEF indicator lamps

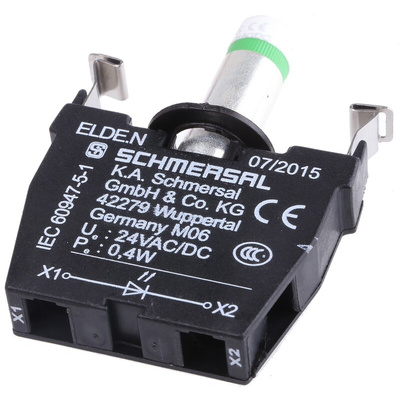

Schmersal 3-Way Connector and Terminal Block, Screw Connection, 250V - ELDE.N GN 24

Use this 3-way connector and terminal block from Schmersal to help you terminate your wires for your lighting applications. It features a green LED that indicates the switching status, making it easy to use and monitor. Thanks to its compact size of 46 (length) x 10 (width) x 60mm (height), it's suitable for installation in tight spaces. The glass fibre-reinforced thermoplastic housing material makes this unit resistant to impact and heat for use in heavy-duty applications. It's also self-extinguishing for enhanced safety in the event of a fire.

Features & Benefits

• Broad operating temperature range of -25°C to +80°C for use in demanding environments
• Meets IEC/EN 60947-1 and EN 60947-5-1 safety standards for low-voltage switchgear and controlgear
• Screw-down termination method to ensure a secure connection
• Light weight of only 20g to minimise strain on your equipment

Applications

• Command and signalling devices
• Lighting and illumination systems

Is it safe to handle this connector and terminal block?

Yes, this component has an IP20 (ingress protection) rating, which means it's touchproof for protection against electric shock. It's also protected against tools and wires larger than 12mm in size.

Datasheet
