118 1183, Schmersal EF Series Panel Mount Indicator, 400V, Screw Terminal Termination, IP20, Индикатор

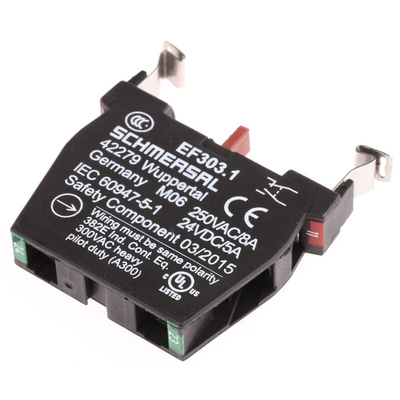

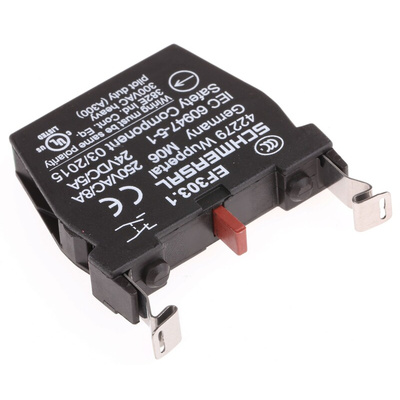

Schmersal Contact Block, 24V DC, 2-Pin - 118 1183

This contact block from Schmersal mounts to your control panels or assembly housings to turn a device's indicator light on or off. The glass fibre-reinforced thermoplastic enclosure is flame-retardant, so it will self-extinguish in the event of a fire. Its silver contacts are highly conductive and corrosion-resistant, ensuring a reliable connection. The device has a broad operating temperature range of -25°C to +80°C for use in both hot and cold environments.

Features & Benefits

• Long mechanical lifespan of at least 10,000,000 operations for long-lasting performance
• IP20 (ingress protection) rating means it's finger-safe and protected against objects larger than 12mm in size
• Compatible with rigid or flexible conductors for versatile use
• Compact dimensions of 46 (length) x 10 (width) x 60mm (depth) for installation in areas where space is limited
• Light weight of 20g to minimise strain on equipment

Applications

• Construction cranes
• Industrial electrical protection
• Protection relays
• Interface circuit breakers

How does this contact block ensure the circuit is off?

This contact block has galvanically isolated contacts to prevent direct conduction paths and turn the circuit off quickly when needed.

Datasheet - EF303.1

Datasheet - EF303.1
