NDT SW, Schmersal Elan Series Black Push Button Head, 22mm Cutout, IP69K

Push buttons and illuminated buttons, hygiene-‑compliant

Features

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit

Push buttons

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry

Illuminated push button

Please order switching and light elements separately

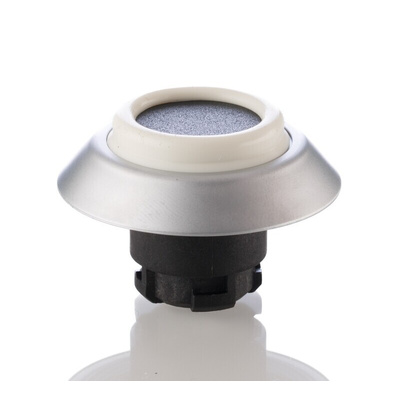

Schmersal Push-Button Head, Black, 22mm Cutout - Elan Series - 118 1194

Choose this push-button head from Schmersal for command and signalling applications. It's hygiene-compliant and suitable for use in the food and beverage industry. The embedded button features a sealing membrane for complete protection against airborne pollutants. A lip gasket keeps its moving parts well-lubricated and in good working order for enhanced efficiency. The ABS (acrylonitrile butadiene styrene) operator resists physical impact and corrosion for improved longevity. To maintain workplace safety, this button is also insulated for good protection against electric shock.

Features & Benefits

• IP67 and IP69K (ingress protection) rating means it's resistant to dust and high-pressure water jets
• Wide operating temperature range of -25°C to +80°C for use in a variety of environments
• Meets IEC/EN 60947-1 (International Electrotechnical Commission/European Norm) safety standards for low-voltage control and switchgear
• Round shape that's easy to activate with the press of a finger
• Small mounting hole diameter of 22.3mm to save space on a control panel

Applications

• Laboratories
• Hospitals and medical centres
• Pharmaceutical and cosmetic industries

Are there any special requirements when mounting a push-button for use in hygienic applications?

Push-buttons for hygienic applications should be arranged to allow for cleaning with a cloth. It's recommended to keep a distance of 70mm between the mounting holes for easier cleaning.
