NDT RT, Schmersal Elan Series Red Push Button Head, 22mm Cutout, IP69K

Push buttons and illuminated buttons, hygiene-‑compliant

Features

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit

Push buttons

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry

Illuminated push button

Please order switching and light elements separately

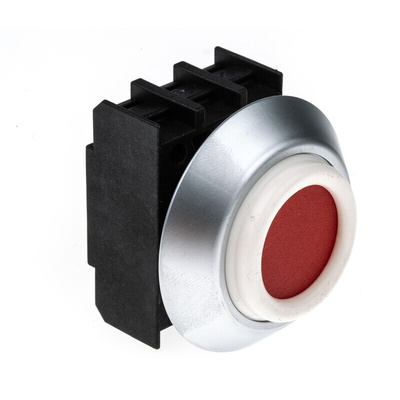

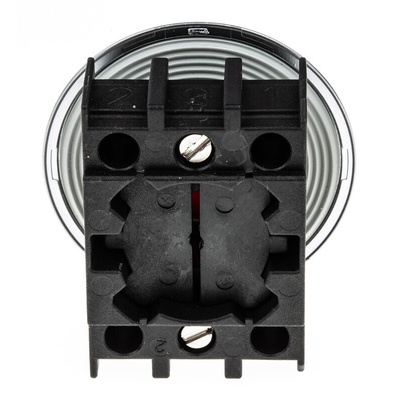

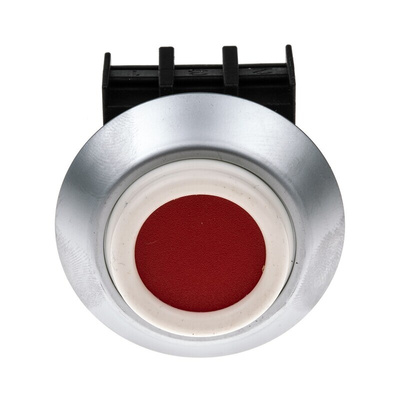

Schmersal Red Push-Button Head, Round, 22mm Cut-Out - Elan Series - NDT RT

Use this Schmersal non-latching push-button head to temporarily switch off your industrial machinery. It's designed for installation on the front of a machine panel using a mounting flange and has a low profile height of only 11mm to reduce bulk. Thanks to its IP69K (ingress protection) rating, it can withstand high-temperature and high-pressure water. This makes it a good choice for use in pharmaceutical or food production applications where frequent washdowns are necessary. The push-button is fully insulated to ensure electrical safety.

Features & Benefits

• ABS (acrylonitrile butadiene styrene) housing for resistance to impact and wear
• Light weight of 25g to reduce strain on your equipment
• Wide operating temperature range of -25°C to +80°C for use in both hot and cold environments

Applications

• Food production
• Medical industry
• Pharmaceutical production

What are the advantages of a non-latching push-button?

Non-latching push-buttons like this one are suitable for use in applications where you need to only temporarily deactivate your machinery. It offers a higher level of user control as it needs you to push the button to cut power to the machine.

Pushbutton NDTRT Data Sheet

Brochure - Command and signalling devices

Instruction Sheet - Command and signalling devices
