RS PRO Uninsulated Male Spade Connector, Tab, 6.35 x 0.8mm Tab Size, 0.5mm² to 1mm², Контакты

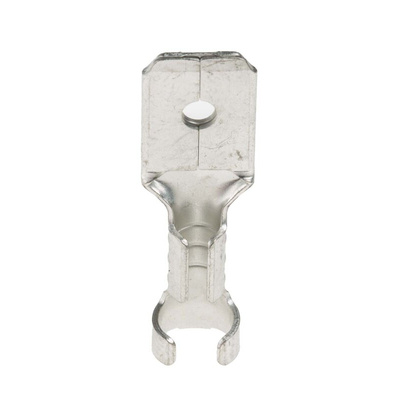

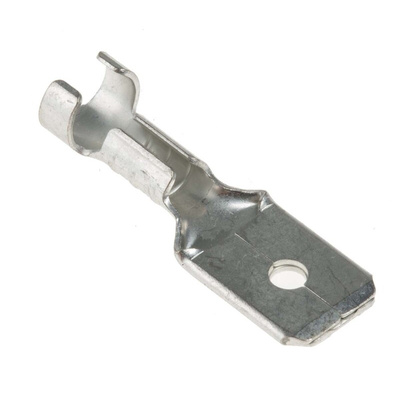

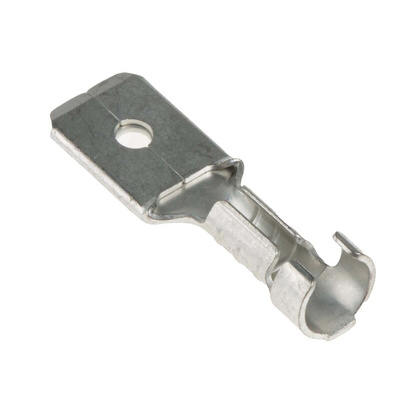

RS PRO Uninsulated Spade Connector, 6.35 mm x 0.8 mm Tab Size, 0.5 mm² to 1 mm²

Use this spade connector to link up single wires to relays or components, or in any situation where you need to make fast, reliable connections. This spade connector is made to fit 6.3 mm receptacles and its design allows terminals to be connected and disconnected while the bolt is still partially screwed in.

Tin-plated brass contacts provide extra strength and conductivity and are resistant to corrosion, oxidation and degradation. The connector is designed for crimp termination, which lets you create mechanically strong solder-free joints using just a pair of pliers. It's a method that's suited for large and small cross-section wires, which can be easily slotted into the component once the other wire has been crimped on the opposite end.

This spade connector is most commonly found in automotive electronics applications and domestic appliances such as dishwashers.

Features and Benefits

• Uninsulated spade connector
• Wire size range of 1 mm² to 0.5 mm², 16 AWG to 14 AWG
• Length of 20 mm
• Tab width of 6.35 mm
• Tab thickness of 0.8 mm
• Male connector
• Unshrouded
• Crimp termination method
• Brass contacts, tin-plated

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 488-1279

Large Pack Size

RS stock no: 270-7471

RS PRO Datasheet
