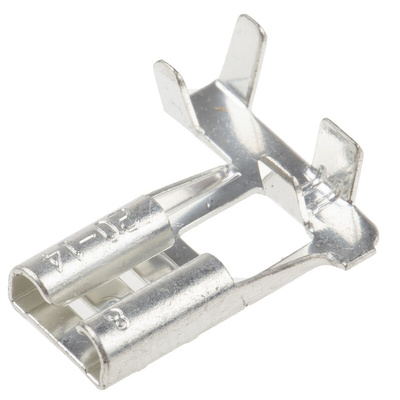

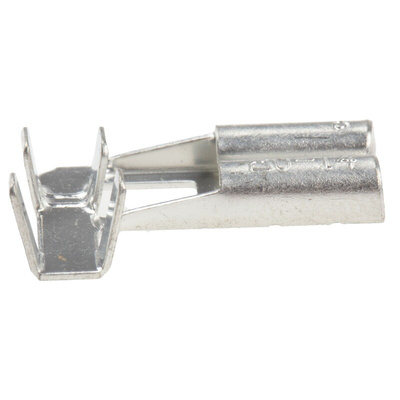

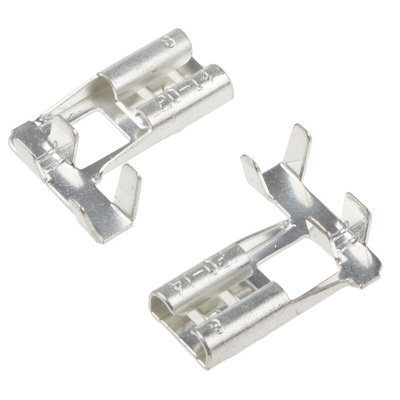

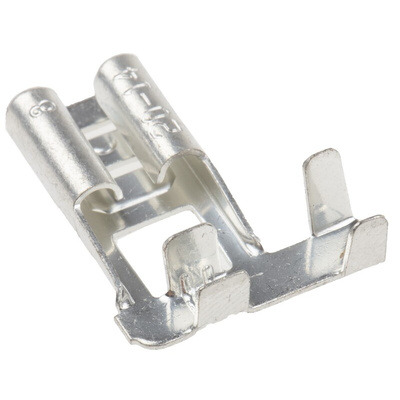

RS PRO Grey Uninsulated Female Spade Connector, Flag Terminal, 6.35 x 0.8mm Tab Size, 1.5mm² to 2.5mm², Контакты

RS PRO Grey Uninsulated Spade Connector, 6.35 x 0.8 mm Tab Size, 1.5 mm² to 2.5 mm²

Use this spade connector to join single wires to relays or components, or in any situation where you need to make fast, reliable connections. This spade connector is made to fit 6.35 mm receptacles and its design allows terminals to be connected and disconnected while the bolt is still partially screwed in.

Tin-plated brass contacts provide extra strength and conductivity while making it more resistant to corrosion, oxidation and degradation. Designed for crimp termination, the connector allows you to create mechanically strong solder-free joints using only a pair of pliers. It's a method that is suited for large and small cross-section wires, which can be easily slotted into the component once the other wire has been crimped on the opposite end.

This spade connector is most often found in automotive electronics applications, as well as domestic appliances such as washing machines and dishwashers.

Features and Benefits

• Grey spade connector
• Wire size range of 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG
• Tab size of 0.8 mm x 6.35 mm
• Length of 13.6 mm
• Unshrouded
• Crimp termination method
• Uninsulated
• Tin-plated brass contacts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 488-1336

Large Pack Size

RS stock no: 270-7601

RS PRO Datasheet
