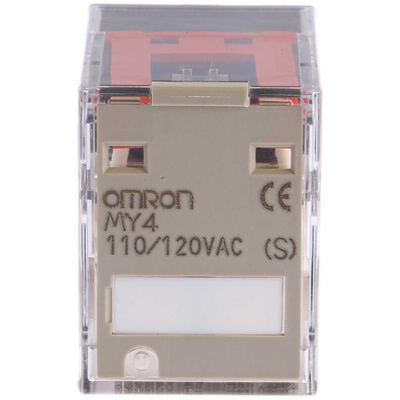

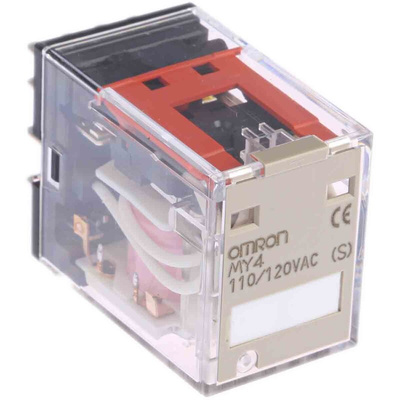

MY4 AC110/120(S), Omron Plug In Power Relay, 120V ac Coil, 5A Switching Current, 4PDT, Реле

OMRON Power Relay, 4430Ω Coil Resistance, 20ms Maximum Operation Time - MY4 Series - MY4 AC110/120(S)

Looking for a lightning-fast way to boot up your equipment? Choose this power relay from OMRON. Flipping the switch energises its internal coil and opens or closes up to four circuits at once, making it ideal for bringing to life large-scale systems like industrial or automated motors, pumps and HVAC units. The quick switching speed of up to 18,000 cycles per hour and extensive lifespan of 50 million operations mean you can bank on this unit's performance in the long run.

Features & Benefits

• Operates reliably in demanding temperatures between -55°C to +70°C
• Light weight of 35g doesn't strain your system
• Low 1.3VA at 60Hz power consumption for energy-efficient operation
• Gold-clad contacts resist corrosion to maintain crystal-clear signals

Applications

• Power utilities
• Manufacturing industry
• Industrial process control

How do I install this unit?

Plug this device into a compatible Push-In Plus socket (111-3063) to reduce wiring work by up to 60% and simplify installation.

Can I install this relay in vibrating conditions?

Yes, it withstands vibrations from 10 to 55Hz at a single amplitude of 0.5mm, meaning it won't come loose when installed in a challenging industrial setting.

Approvals

VDE; UL; CSA

MY(S) Datasheet
