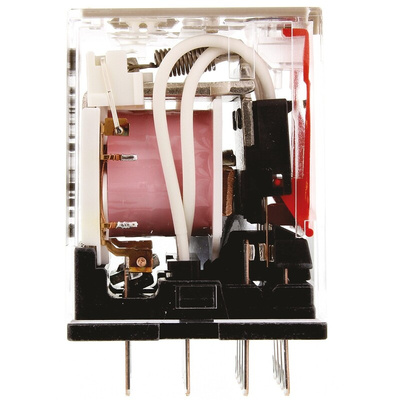

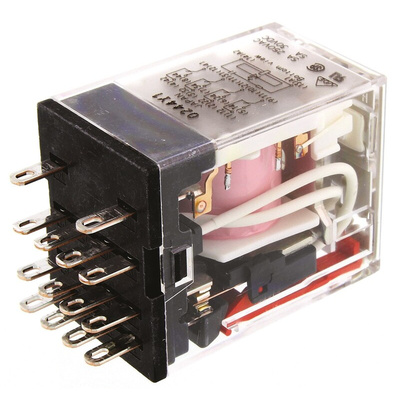

MY4N-CR AC110/120(S), Omron Plug In Power Relay, 120V ac Coil, 5A Switching Current, 4PDT, Реле

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

OMRON Power Relay, 1.1W Coil Power, 4430Ω Coil Resistance - MY(S) Series - MY4N-CR AC110/120(S)

Need to power up productivity in your industrial equipment? Plug in this power relay from OMRON. It regulates energy flow across four circuits so you can switch multiple devices on and off in the blink of an eye. The 150W rating makes it ideal for use in heavy-duty systems. This unit has gold-plated contacts that pin directly into a compatible socket and achieve a firm hold. They resist corrosion, so you can count on a reliable connection even in humid settings. An insulating plastic enclosure prevents electrical hazards to keep workers safe.

Features & Benefits

• Compact dimensions of 21.5 (W) x 36 (L) x 28mm (H) save space in busy systems
• Substantial lifespan of 50 million operating cycles makes it a reliable long-term option
• Performs in temperatures between -55°C and +60°C for use in harsh settings
• LED indicator makes it simple to check in on your system at a glance

Applications

• Robotics sector
• Aerospace industry
• Industrial autoamtion

Can I use this relay in fast-paced systems?

Yes. It reacts in just 20ms and completes up to 18,000 cycles per hour so you can trust it to keep up with equipment operating at a fast rate.

Approvals

VDE; UL; CSA

MY(S) Datasheet
