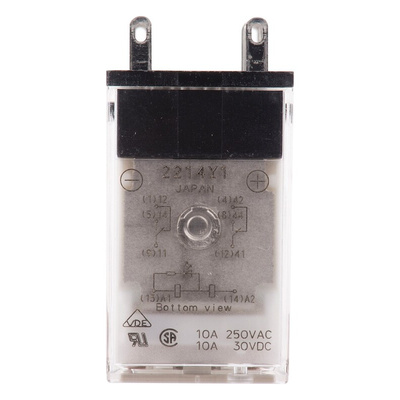

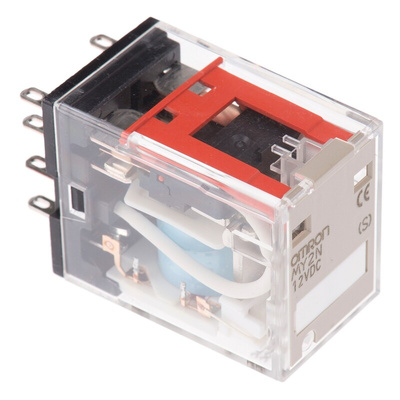

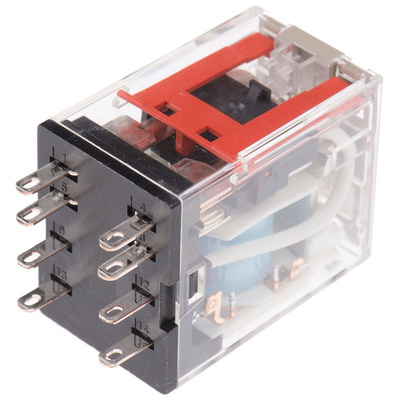

MY2N DC12(S), Omron Plug In Power Relay, 12V dc Coil, 5A Switching Current, DPDT, Реле

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

OMRON Power Relay, Gold-Plated Contacts, 35g Weight - MY Series - MY2N DC12(S)

For seamless switching of your electrical appliances, turn to this power relay from OMRON. It has durable and highly conductive silver contacts that open and close to stop and start current flow to your circuit. Gold plating boosts their corrosion resistance, assuring you of long-term performance, even in damp settings. This relay pairs with a push-in socket (such as 326-6922) to save you time and hassle during set-up. It also reduces your wiring by up to 60%. A power relay like this one is typically used for switching high-current loads, such as you get in motor control circuits and HVAC equipment.

Features & Benefits

• Safe to use in demanding conditions, thanks to an operating temperature range between -55°C and +60°C
• Current rating of 10A makes it fit for light-duty to medium-duty applications
• Light 35g weight makes it easy to handle during assembly and puts minimal strain on your mounting surface

Applications

• Robotics systems
• Transportation industry
• Medical equipment

How durable is this power relay?

This unit handles up to 100 million mechanical operations, so you can rest assured that it stands the test of time.

Approvals

VDE; UL; CSA

MY(S) Datasheet
