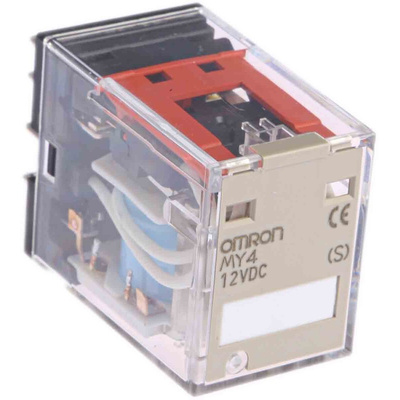

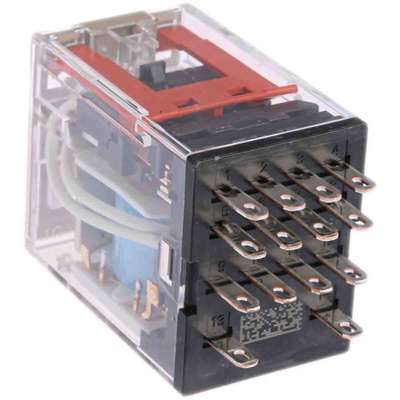

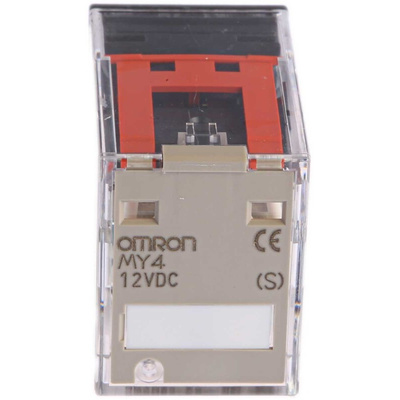

MY4 12VDC (S), Omron Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT, Реле

OMRON Power Relay, 100mΩ Insulation Resistance, 3A Maximum AC/DC Contact Current - MY Series - MY4 DC12(S)

Need a small but mighty device to turn on multiple systems at once? Plug in this 4PDT power relay from OMRON. It sends power to bi-directional machines such as DC motors, pumps or conveyors to suit the demands of heavy industrial environments. Thanks to a 12V DC coil, it's well-suited for use with smaller bits of equipment. Gold-plated silver contacts are on hand to minimise corrosion and keep energy zipping along efficiently. Wide and flat 2.6mm pins boost conductivity while keeping temperature increase to a minimum.

Features & Benefits

• Performs without a hitch in temperatures from -55°C to +70°C
• Light weight of 35g won't put unnecessary strain on your equipment
• Mechanical operating frequency of 18,000 switches per hour suits use with fast-paced equipment
• Transparent housing for at-a-glance wiring checks
• Cuts wiring down by 60% when mounted with a PYF-PU socket

Applications

• Telecommunications facilities
• Manufacturing industry
• Power generation sector

How quickly does this relay switch?

It operates and releases in no more than 20ms, so you can depend on it for speedy reactions.

Approvals

VDE; UL; CSA

MY(S) Datasheet
