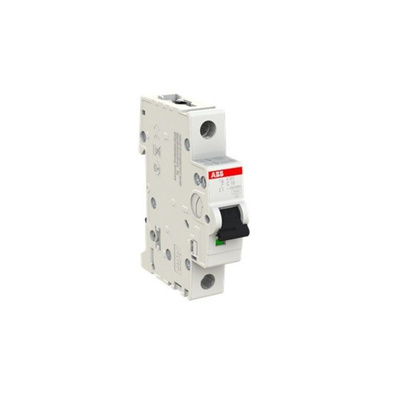

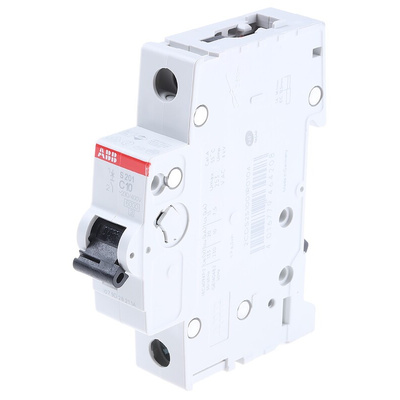

2CDS251001R0104 - S201C10, ABB System Pro M Compact S200 MCB, 1P, 10A Curve C, 253V AC, 72V DC, 6 kA Breaking Capacity

Automatic circuit breakers, S 200-C series, 6kA

Automatic circuit breakers, C-characteristic
One, two, three and four pin versions available
Finger and overhand-safe terminals to DIN 50 274 (VDE 0660, part 514)
Possible to connect one, several and fine wire conductors, varying conductor cross-sections possible
Application: industrial installations, large buildings, motors and florescent lamps
Universal signal contact/auxiliary switch (1 changer) under stock no. 488-6448 supplied separately

Approvals

DIN VDE 0641, part 11, IEC 60898,
EN 898, IEC 60947-2

ABB MCB, Short-Circuit Protected, IP20 Rating - S200 Series - 2CDS251001R0104 - S201C10

Looking for a current-limiting breaker to protect you and your equipment from the effects of overcurrent? Choose this MCB from ABB. Its type-C breaking characteristics make it well-suited to industrial environments and applications involving high power loads with a greater risk of harmful surges. The versatile unit uses a bimetallic strip to shield against overvoltage and an electromagnetic coil to provide short-circuit protection, so you get good overall safety. As a single-pole resettable MCB, this unit breaks the supply of current to a single circuit and is reset with a handy on-off toggle switch.

• Accepts cables up to 35mm², so it's compatible with various cable sizes up to 2AWG
• Supports an ambient temperature range between -25°C and +55°C for safe use in harsh environments
• Resists shock and vibration, making it safe for use in industrial workplaces with moving machine parts

Applications

• Aerospace engineering
• Industrial installations
• Fluorescent lamps
• Motors

How do I mount this component?

This MCB simply snaps onto a standard 35mm DIN rail without the need for any tools, so you'll find it quick and easy to mount.
