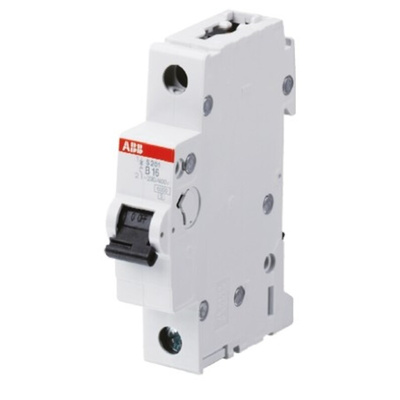

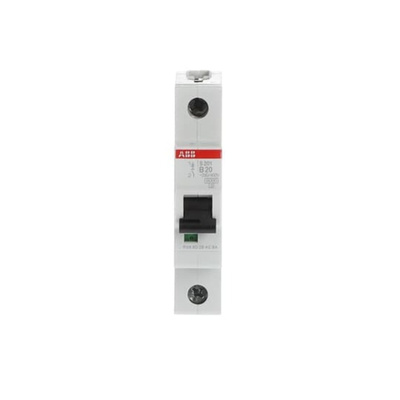

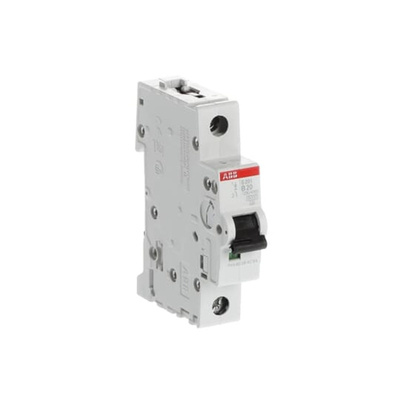

2CDS251001R0205 - S201B20, ABB System Pro M Compact S200 MCB, 1P, 20A Curve B, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB MCB, 4kV Impulse Withstand Voltage, IP20 Rating - S200 Series - 2CDS251001R0205 - S201B20

Shield equipment from electrical hazards and remove the risk of harm to users with this MCB from ABB. As a type-B breaker, it's a great shout for protecting domestic low-voltage circuits whenever they receive between three and five times the rated load of 20A. Its short-circuit breaking capacity of up to 20kA and impulse withstand voltage to 4kV make it a safety stalwart that prevents current faults or voltage surges from causing problems. You'll find it's a breeze to create robust wired connections thanks to the unit's screw terminals. These have a low tightening torque of 2.8Nm, so all you need to get the job done by hand is a simple Posidriv screwdriver.

Features & Benefits

• Accepts AC or DC inputs for application versatility
• IP20 approval means its touch-safe and protected against objects over 12mm
• Indicator windows keep you up to date on device status
• Resistance to shock and vibration makes it safe to use in demanding settings

Applications

• Control circuits
• Lighting
• Appliances

How do I install this product?

This versatile MCB suits any mounting position and is a piece of cake to install – it simply snaps onto a standard 35mm DIN rail without the need for any tools.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
