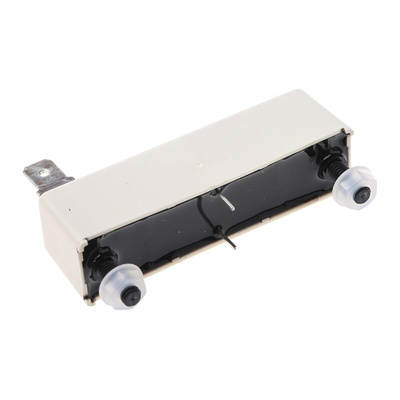

DAT71210S, Sensata / Cynergy3 Sensata/Cynergy 3 PCB Mount Reed Relay, 12V dc Coil, SPST, 7000V dc Max, 2 A Max, 150Ω, Реле

Vacuum Encapsulated D Series, Panel Mount

50W switching
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 10¹⁰ ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies

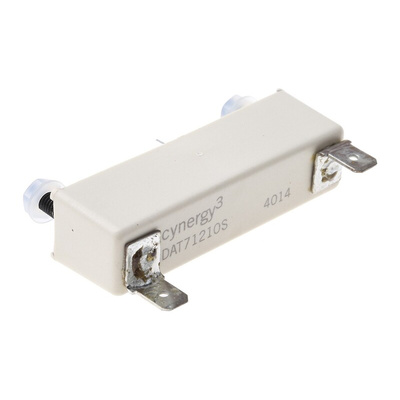

Sensata Cynergy3 SPNO Reed Relay, 12V DC, 150Ω - D Series - DAT71210S

Do you need a dependable switching solution? This reed relay from Sensata Cynergy3 is designed for applications where reliability is crucial, such as cardiac defibrillators and security equipment. The reed switch is high-vacuum and hermetically sealed, so it's protected from corrosion and contamination. This, along with its electromagnetic operation, contributes to the unit's long life expectancy of one million cycles. Tungsten contacts allow for a high maximum switching voltage of 7000V (AC and DC).

Features and Benefits

• Fast switching speed of 3ms (milliseconds) for responsiveness
• Wide operating temperature range of -20°C to +70°C for safe use in challenging environments
• NO (normally open) configuration ideal for alarm or safety systems

How do I connect this reed relay?

This model is panel mounted and uses Quick Connect terminals – sometimes called FASTON terminals – which make installation quick and easy, as well as secure.

What's the operating time of this relay?

The reed switch in this relay operates in just 3ms (milliseconds). This includes bounce time, which is the amount of time taken for the contacts to settle and provide an unbroken connection.
