DAT72410S, Sensata / Cynergy3 Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V dc Max, 2 A Max, 780Ω, Реле

Vacuum Encapsulated D Series, Panel Mount

50W switching
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 10¹⁰ ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies

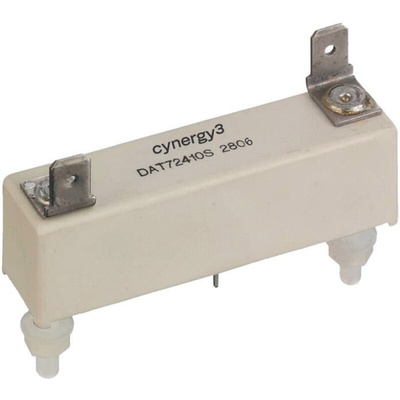

Sensata Cynergy3 Panel-Mounted Reed Relay, 2A, 24 V DC - D Series - DAT72410S

If you need a device to ensure the smooth transition of power to your electrical installations, choose this SPNO (single pole, normally open) reed relay from Sensata Cynergy3. It contains internal reed switches that transmit electrical charges for swift contact-to-coil charge transfer of up to 17 kV. Thanks to its maximum switching voltage of 7000 V AC, this reed relay is suitable for use in high-voltage applications, such as medical devices and industrial equipment. It offers a lifespan of up to one million electrical cycles, so you can be sure of long-lasting performance.

Features and Benefits

• Operating time of 3 milliseconds to ensure quick electrical charges
• Maximum operating temperature of up to +70°C makes it suitable for high-temperature applications
• Reed switches include tungsten contacts for optimal connectivity and durability
• Compact length of 60 mm for use in areas where space is restricted
• Quick-connect terminal type for fast and simple connections

How do I install this reed relay?

The reed relay comes ready for panel mounting. It has 1/4-in male terminals for a secure fit using nylon studs.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet
