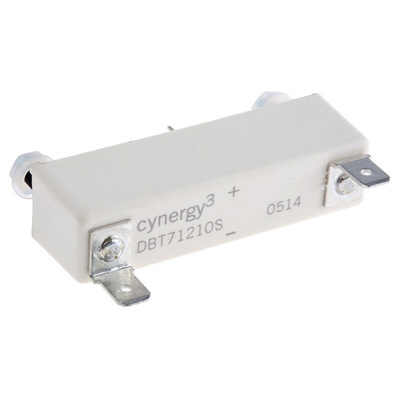

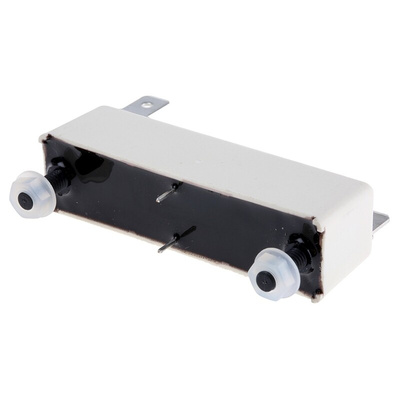

DBT71210S, Sensata / Cynergy3 Sensata / Cynergy 3 PCB Mount Reed Relay, 12V dc Coil, SP-NC, 7000V dc Max, 2 A Max, 240Ω, Реле

Vacuum Encapsulated D Series, Panel Mount

50W switching
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 10¹⁰ ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies

Sensata Cynergy3 Quick-Connect Reed Relay, 12V DC Coil Voltage, 2ms Operating Time - D Series - DBT71210S

Install this high-voltage reed relay from Sensata Cynergy3 into your electrical circuit for rapid switching capabilities. Thanks to its high maximum switching voltage of 7000V AC/DC (alternating current/direct current), it's a good choice for use in heavy-duty systems. Its tungsten contacts offer good conductivity and resistance to corrosion to ensure a reliable electrical connection. The quick-connect terminal style makes it simple and quick to install without the need for specialised tools. You can use reed relays like this one for testing and instrumentation applications, as well as for high-voltage power supplies.

Features & Benefits

• Compact dimensions of 60 (length) x 15.8 (width) x 24.8mm (height) to save space in your circuit
• Long lifespan of one million electrical cycles for long-lasting performance
• Fast operating time of 2ms to ensure rapid and efficient control

Can this reed relay operate at extreme temperatures?

This reed relay features a wide operating temperature range of -20°C to +70°C, making it a good choice for use in both cold and hot environments.
