RS PRO, jack Panel Mount TNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

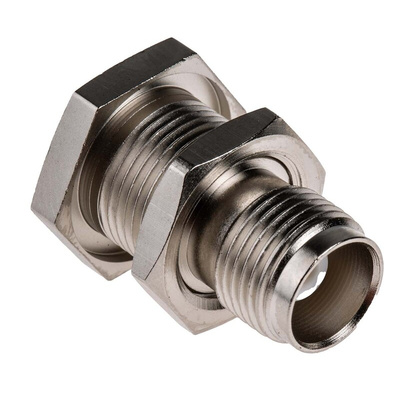

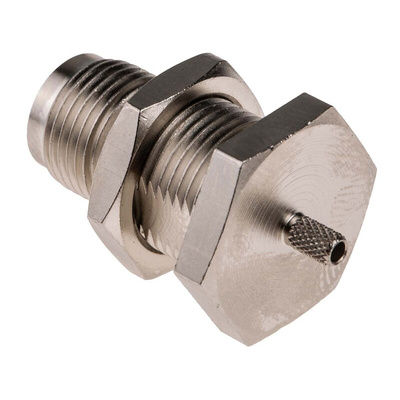

RS PRO 50Ω Straight Panel Mount TNC Connector, Jack

Need to connect coaxial cables securely and easily? From our trusted RS PRO range, this straight female TNC connector is a miniature coaxial connector useful in joining a variety of cables for all your data-transmission needs. You'll find this connector works with RG174/U, RG188 A/U, RG316/U cables.

TNC connectors share their contact design with BNCs, but have a threaded connection instead of a bayonet. This means TNC connectors mate more securely, reducing issues that might be caused by vibration or accidental disconnection. This mount socket has a nickel-plated brass body and gold-plated centre contact. For termination, simply crimp the connectors onto the cable with a crimping tool.

With an operating frequency of 11GHz, this connector is suitable for a wide range of radio and wired applications. Weatherproof materials and a temperature range of -65°C to +165°C mean it can be used outside as well as indoors.

Features and Benefits

• Straight body female TNC connector
• For use with cable types RG174/U, RG188 A/Y, RG316/U
• Panel mounting
• Designed for crimping onto cables
• Characteristic impedance of 50 Ω
• Normal polarity
• Operating temperature between -65°C to +165°C
• Compatible with RG174/U, RG188 A/U and RG316/U cables
• Nickel body plating and beryllium copper contact material

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
