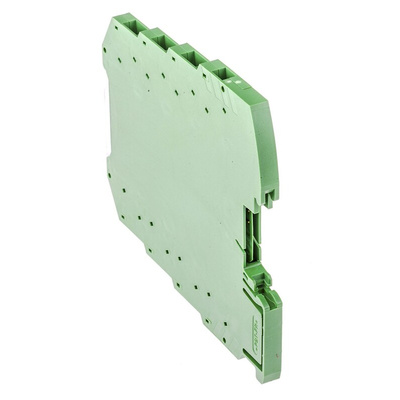

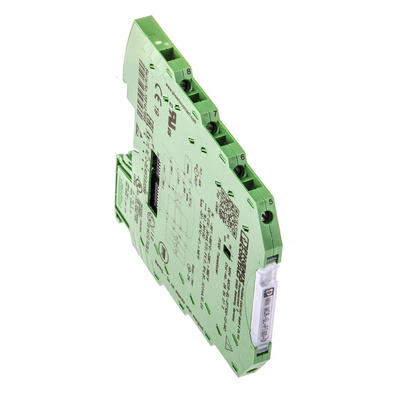

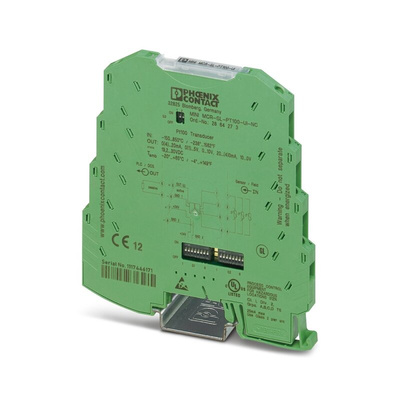

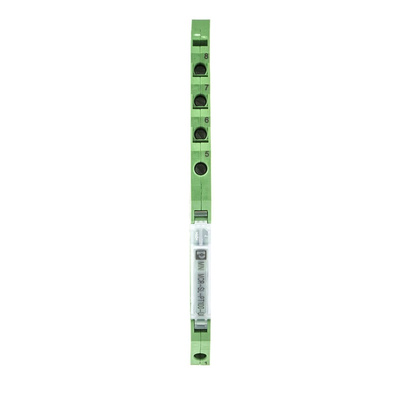

2864273, Phoenix Contact Configurable Transducer, 1 mA Input, 0 → 10 V, 0 → 20 mA Output

Configurable PT100 Transducer

The 2864273 from Phoenix contact is a reliable and great 3-way isolated temperature measuring transducer. This module allows you to connect PT 100-resistance thermometers to it in a 2,3 or 4 conductor connection method. Default parameters are easily changed by the simple DIP switch located on the side of the module that will allow you to change the connection method, temperature range to be measured, output signals and type of fault for evaluation.
Voltage to the device (19.2 V DC or 30 V DC) can be supplied using a TBUS DIN rail connector or via the terminal blocks.

Features and benefits:

• Allows PT 100 thermometers to be connected (IEC 60751)


• Power via a TBUS DIN rail connector or terminal blocks


• DIN rail mounted (or on TBUS connector)


• Super thin 6.2 mm housing


• Easily configured via a DIP switch


• Approved for ATEX zone-2 installation (potentially explosive areas)

What analog standard signals are available?

Outputs are electrically isolated

• 0–20 mA


• 4-20 mA


• 0-10 V


• 0-5 V


• 1-5 V


• 10 – 0 V


• 20-0 mA


• 20-4 mA

Accessories:

TBUS DIN rail connector – 489-2825
