2864176, Phoenix Contact 3RS7003 Series Signal Conditioner, Current, Voltage Input, Current Output, 24V dc Supply, ATEX

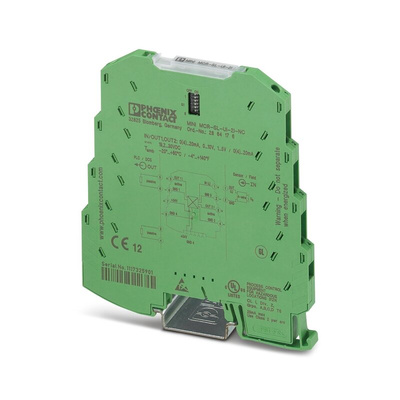

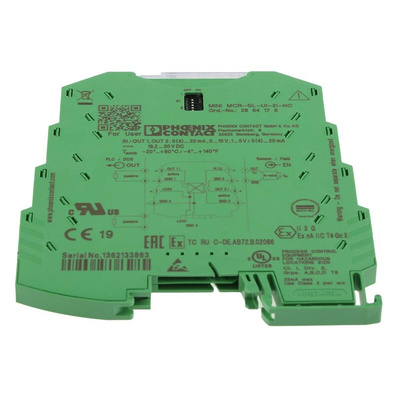

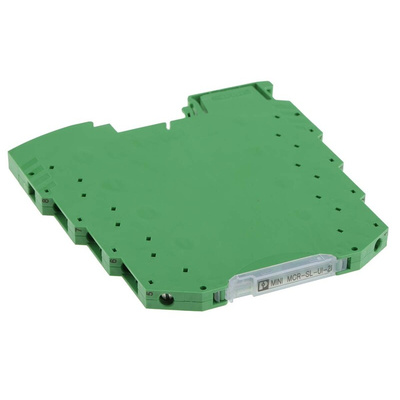

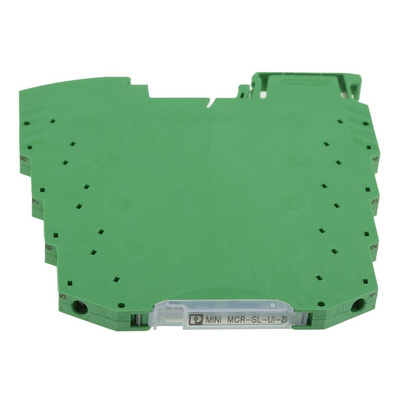

Phoenix Contact Signal Conditioner, 12mm Stripping Length, Isolated - MINI MCR-SL-UI-2I-NC - 2864176

Get readable messages in a flash using this signal conditioner from Phoenix Contact. As it takes on the jobs of isolating, converting and amplifying signals before filtering them, it's a handy multitasker. You can use it to turn an input between 0 and 10V or 0 and 20mA into an output ranging from 0 to 20mA to suit your needs.
As the unit has 4-way isolation, each of the two channels is electrically separated from the other. This minimises the risk of signal distortion and maximises performance. For a tailor-made solution, you can configure up to eight signal combinations using DIP switches
Compact dimensions of 6.2 (W) x 93.1 (H) x 101.2mm (D) mean this unit's ideal for tight spaces. Setup is streamlined thanks to the TBUS foot-element, which simplifies the wiring process. You'll find a conditioner like this used in power generation plants and transportation systems.

Features & Benefits

• Standard M3 thread ensures a firm connection
• Works reliably in temperatures between -20°C and +60°C
• Simple mounting onto a standard DIN rail, without the need for tools
• Weighs only 84g to limit strain on your setup
• Vivid green colour makes it easy to spot in a busy system
