2864150, Phoenix Contact Isolating Amplifier, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10

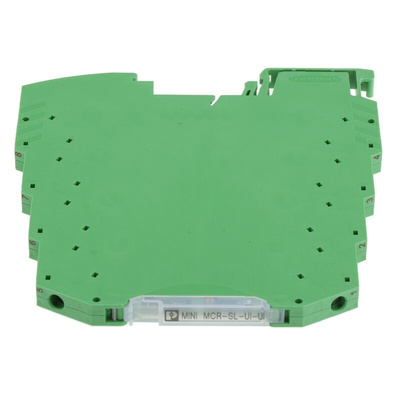

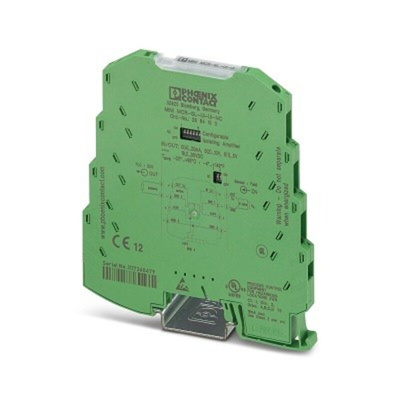

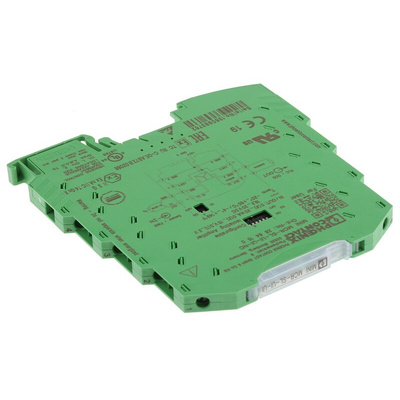

MINI MCR-SL-UI-UI-NC Signal conditioner - 2864150

From Phoenix contact, is a 3-way isolating amplifier that is used to electrically isolate analogue signals. The 2864150 boasts up to 36 signal combinations thanks to it's easy to access DIP Switch located on the side and with Phoenix's T-BUS connector, this unit can be powered with just a plug and play connector meaning now messy stripping of wires. Of course, if needed you can give the module power via wire thanks to its screw connections located on the front-end.

Phoenix Contact have designed this to fit with their already popular MINI MCR series, meaning this module is only 6.2mm wide allowing it to fit on any DIN rail that needs to be efficient.

Features and benefits:

• Multiple ways to supply power thanks to the cleverly designed inputs (via T-BUS connector or wires)


• 3-Way isolation


• Low power consumption


• 36 combinations available with DIP switches


• Input and output, 0-20mA, 4-20mA, 0-10V, 2-10V, 0-5V, 1-5V


• Mounted onto a DIN rail

Applications:

• Electrical isolation


• Signal conversion


• Amplification


• Filtering of standard analogue signals
