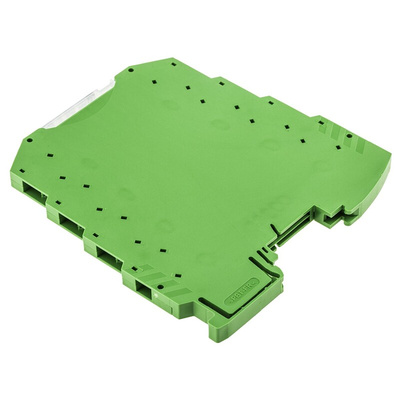

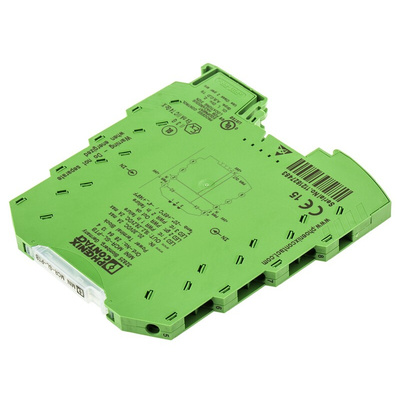

2864134, Phoenix Contact PSU Configuration Terminal, 0 → 30 V dc Input, 0.8 → 30 V dc Output

Redundant PSU Configuration Terminal and DIN Rail Power Bus Connectors, 24Vdc

Redundant PSU configuration terminal

Input, 2 x 24 VDC supply
Integrated diode decoupling of power supplies
Output, 24 VDC via the DIN rail bus connector

DIN rail power bus connectors, 24Vdc

Snap into 35mm DIN rails to produce power bus of required length
Two MINI MCR modules can be plugged into one block
Up to 80 MINI-MCR modules can be supplied power without any wiring
Any module can be removed without turning off the power or interrupting the supply to other modules

Can be mounted on DIN rail individually or with other units. The housings are 102.5mm high by 6.2mm wide. The performance specifications are similar to standard sized MCR products.

2864134 Datasheet
