3216/CC/VH/LDXX/R, Eurotherm 3216 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 3 Output Analogue, Changeover Relay, Logic, Relay, 85, Регулятор температуры

Eurotherm Temperature Controller

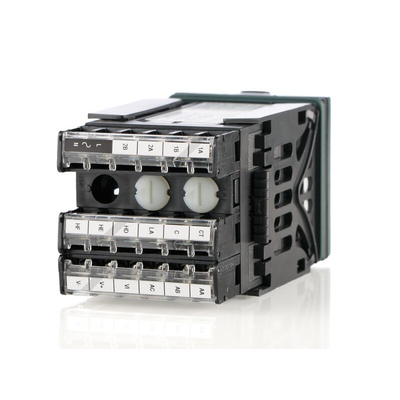

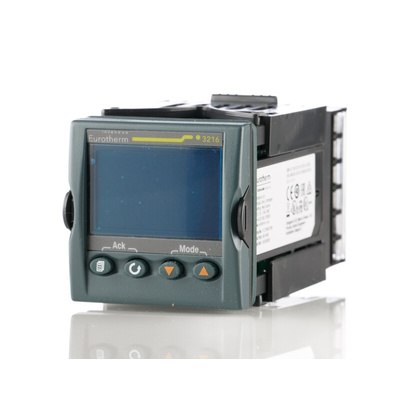

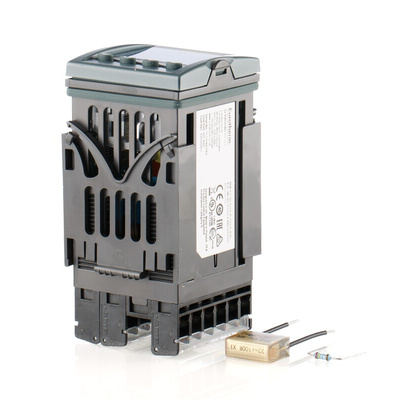

The Eurotherm 3216 temperature controller has a supply voltage ranging from 85VAC to 264VAC. This standard controller has a width of 48mm and a height of 48mm and depth of 101mm (1/16 DIN) device. It has up to 3 outputs where the first output is Logic I/O whereas the second output is the current ranging from 0mA to 20mA and the third output is a relay. It has quick and easy commissioning. It has quick and easy commissioning. It has clear information about the process of scrolling and custom messages. The custom alarm messages facilitate easy understanding. It also has a provision for recipe selection from the operator interface. It is enabled with an internal timer and setpoint programming. There is an integral ammeter for instant alerts regarding heater faults. Additionally, it has a remote setpoint solution for multi-zone applications.

Features and Benefits

Analogue retransmission
Current monitoring
Custom alarm messages for easy understanding
Expert configuration via PC wizard with online help
Heater failure detection
Modbus SP retransmission
Multi-language support (English, German, French, Italian and Spanish)
Programmable with iTools configuration software when used with configuration clip
Recipe selection from operator interface
Safety Messaging via 4 digit starburst display for simple visual indication of the process status
Universal inputs are B, J, K, L, N, R, S, T, C, PT100, 0mV to 80mV, 0mA to 20mA, 4mA to 20mA

Applications

Heat treatment
Hot runner
Ovens & chillers
Plastics extrusion
Stress relieving
Thermal forming

Certifications

AMS2750D
BS EN61326
CE certified
cUL approved (file E57766)
DIN 3440 (3216 only) suitable for use in Nadcap
EN14597 TR
EN14597 TR
GOST-R
IP65 rated
